GD100FTY120C6S Datasheet - STARPOWER

GD100FTY120C6S IGBT

GD100FTY120C6S Features

* Low VCE(sat) Trench IGBT technology

* VCE(sat) with positive temperature coefficient

* Low switching loss

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated copper baseplate using DBC technology Typical

GD100FTY120C6S Datasheet (443.14 KB)

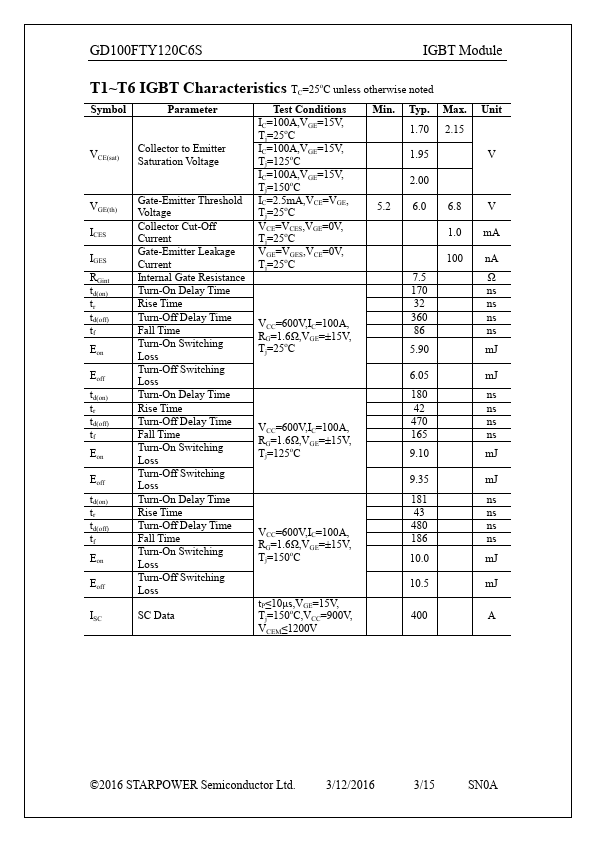

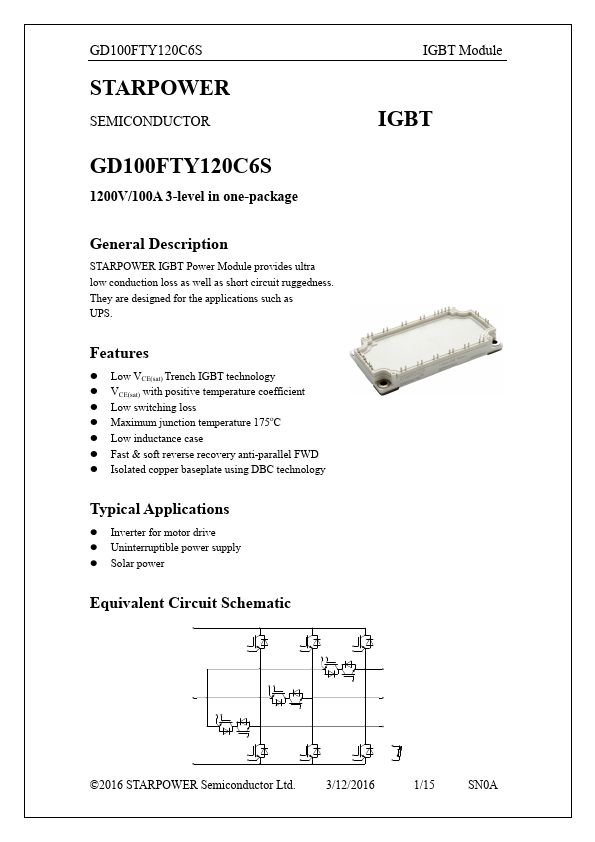

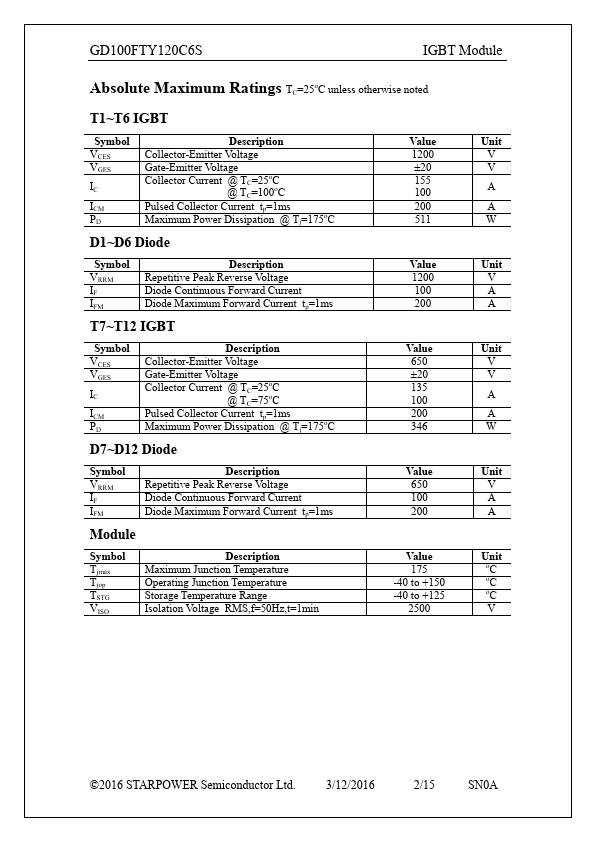

Preview of GD100FTY120C6S PDF
GD100FTY120C6S Datasheet Preview Page 2 GD100FTY120C6S Datasheet Preview Page 3

Datasheet Details

Part number:

GD100FTY120C6S

Manufacturer:

STARPOWER

File Size:

443.14 KB

Description:

Igbt.
