PPN472K415061200 - Film Foil Capacitors

Download the PPN472K415061200 datasheet PDF. This datasheet also covers the PPN102K212061000-SR variant, as both devices belong to the same film foil capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PPN102K212061000-SR-CAP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PPN472K415061200
Manufacturer SR-CAP
File Size 231.14 KB
Description Film Foil Capacitors
Datasheet download datasheet PPN472K415061200 Datasheet

Overview

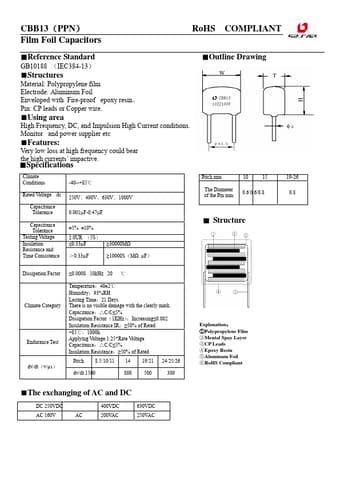

CBB13（PPN） Film Foil Capacitors RoHS COMPLIANT ■Reference Standard ■Outline Drawing GB10188 （IEC384-13） ■Structures Material: Polypropylene film Electrode: Aluminum Foil Enveloped with Fire-proof epoxy resin。 Pin: CP leads or Copper wire.

■Using area High Frequency, DC, and Impulsion High Current conditions.

e.g.

Key Features

  • loss at high frequency could bear the high currents’ impactive.
  • Specifications Climate Conditions Rated Voltage dc Capacitance Tolerance Capacitance Tolerance Testing Voltage Insulation Resistance and Time Consistence Dissipation Factor -40--+85℃ 250V、400V、630V、1000V 0.001µF-0.47µF Pitch mm The Diameter of the Pin mm 10 15 19-26 0.8 0.6 0.6/0.8.
  • Structure ±5% ±10% 2.0UR （5S） ≤0.33µF ＞0.33µF ≥30000MΩ ≥10000S（MΩ. µF） ℃ ≤0.0008 10kHz 20 Climate Category Endurance Test Temperature：4.
