CGX-32254 - CRYSTAL

Key Features

  • Dimensions (3.2 2.5 0.8) Ceramic SMD Package Glass sealed Excellent Environment Resistant Re ow Soldering / Emboss Taping Compliant products with AEC-Q200 Specifications Model Nominal frequency range Crystal cut Storage temperature range Operating temperature range Frequency temperature characteristics (Ref. to +25 ) Frequency tolerance (at +25 ) Equivalent series resistance Load capacitance Shunt capacitance Level of drive CGX-32254 12.00055.000 MHz Fundamental [AT.
  • cut] -40 90, -40+1.

📥 Download Datasheet

Datasheet Details

Part number CGX-32254
Manufacturer SIWARD
File Size 154.91 KB
Description CRYSTAL
Datasheet download datasheet CGX-32254 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by SIWARD

Part Number Description
CGX-50322 CRYSTAL
CGX-50324 CRYSTAL

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

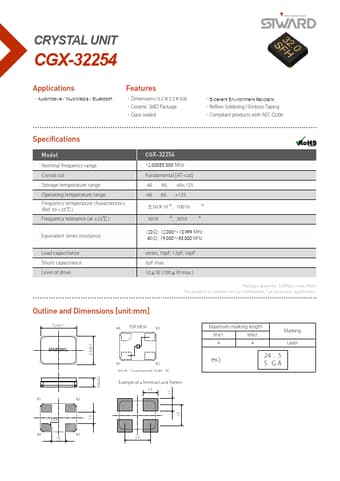

CRYSTAL UNIT CGX-32254 Applications Automotive / MultiMedia / Bluetooth Features Dimensions (3.2 2.5 0.8) Ceramic SMD Package Glass sealed Excellent Environment Resistant Re ow Soldering / Emboss Taping Compliant products with AEC-Q200 Specifications Model Nominal frequency range Crystal cut Storage temperature range Operating temperature range Frequency temperature characteristics (Ref. to +25 ) Frequency tolerance (at +25 ) Equivalent series resistance Load capacitance Shunt capacitance Level of drive CGX-32254 12.00055.000 MHz Fundamental [AT–cut] -40 90, -40+125 -40 85, +125 50 10-6; 10010 -6 3010 -6; 5010 -6 120 : 12.000 18.999 MHz 60 : 19.000 55.000 MHz series, 10pF, 12pF, 16pF 5pF max. 10 W (100 W max.) Package quantity: 3,000pcs max./Reel.
