9DBL0651 - Zero-Delay/Fanout Buffer

Download the 9DBL0651 datasheet PDF. This datasheet also covers the 9DBL0242 variant, as both devices belong to the same zero-delay/fanout buffer family and are provided as variant models within a single manufacturer datasheet.

Description

The 9DBL02x2/9DBL04x2/ 9DBL06x1/9DBL08x1 buffers are low-power, high-performance members of Renesas' full featured PCIe family.

The buffers support PCIe Gen1 through Gen5.

Common Clocked (CC) Independent Reference (IR) with and without spread spectrum (SRIS, S

Features

  • 2 to 8 Low-Power HCSL (LP-HCSL) outputs eliminate 4 resistors per output pair.
  • 9DBLxx4x devices provide integrated 100Ω terminations.
  • 9DBLxx5x devices provide integrated 85Ω terminations.
  • See AN-891 for easy coupling to other logic families.
  • Spread-spectrum compatible.
  • Dedicated OE# pin for each output.
  • 1MHz to 200MHz operation in fan-out mode.
  • 3 selectable SMBus addresses.
  • Extensive SMBus-selectable features allow optimization to customer requiremen.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (9DBL0242-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 9DBL0651
Manufacturer Renesas
File Size 1.34 MB
Description Zero-Delay/Fanout Buffer
Datasheet download datasheet 9DBL0651 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
9DBL0651 6-output 3.3V PCIe Zero-Delay Buffer IDT
9DBL0653 6-output 3.3V LP-HCSL Zero-Delay Buffer IDT
9DBL06 6-output 3.3V PCIe Zero-Delay Buffer IDT
9DBL0641 6-output 3.3V PCIe Zero-Delay Buffer IDT
9DBL0643 6-output 3.3V LP-HCSL Zero-Delay Buffer IDT

Other Datasheets by Renesas

Part Number Description
9DBL0651C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers
9DBL0641 Zero-Delay/Fanout Buffer
9DBL0641C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers
9DBL0242 Zero-Delay/Fanout Buffer
9DBL0242C 2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

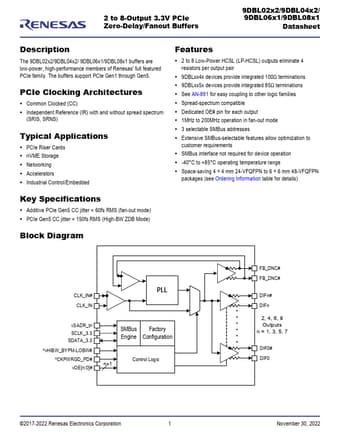

2 to 8-Output 3.3V PCIe Zero-Delay/Fanout Buffers 9DBL02x2/9DBL04x2/ 9DBL06x1/9DBL08x1 Datasheet Description The 9DBL02x2/9DBL04x2/ 9DBL06x1/9DBL08x1 buffers are low-power, high-performance members of Renesas' full featured PCIe family. The buffers support PCIe Gen1 through Gen5.
