2N2219A - TO-39 NPN SILICON PLANAR SWITCHING TRANSISTORS

Rectron

General Description

SYMBOL 2N2219A Collector -Emitter Voltage VCEO 40 Collector -Base Voltage VCBO 75 Emitter -Base Voltage VEBO 6.0 Collector Current Continuous IC 800 Power Dissipation @Ta=25 degC PD 800 Derate Above 25deg C 4.57 @ Tc=25 degC PD 3.0 Derate Above 25deg C 17.1 Operating And Sto

📥 Download Datasheet

2N2219A to-39 npn silicon planar switching transistors by Rectron - Datasheet Preview

Datasheet Details

Part number	2N2219A
Manufacturer	Rectron
File Size	379.13 KB
Description	TO-39 NPN SILICON PLANAR SWITCHING TRANSISTORS
Datasheet	2N2219A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2N2219A	Bipolar NPN Device	Seme LAB
2N2219A	SILICON SWITCHING NPN TRANSISTOR	TT
2N2219A	HIGH SPEED SWITCHES	STMicroelectronics
2N2219A	NPN Switching Silicon Transistor	VPT
2N2219A	Small Signal Switching Transistor	ON Semiconductor

Other Datasheets by Rectron

Part Number	Description
2N2222A	NPN SILICON PLANAR SWITCHING TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

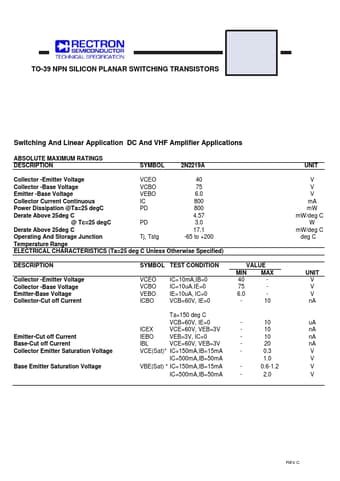

TO-39 NPN SILICON PLANAR SWITCHING TRANSISTORS 2N2219A Switching And Linear Application DC And VHF Amplifier Applications ABSOLUTE MAXIMUM RATINGS DESCRIPTION SYMBOL 2N2219A Collector -Emitter Voltage VCEO 40 Collector -Base Voltage VCBO 75 Emitter -Base Voltage VEBO 6.0 Collector Current Continuous IC 800 Power Dissipation @Ta=25 degC PD 800 Derate Above 25deg C 4.57 @ Tc=25 degC PD 3.0 Derate Above 25deg C 17.1 Operating And Storage Junction Tj, Tstg -65 to +200 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) DESCRIPTION Collector -Emitter Voltage Collector -Base Voltage Emitter-Base Voltage Collector-Cut off Current SYMBOL TEST CONDITION VCEO VCBO VEBO ICBO IC=10mA,IB=0 IC=10uA.
