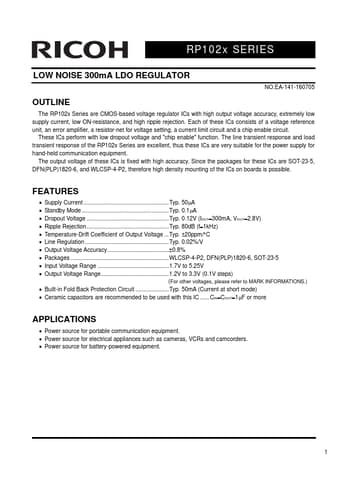

RP102N221D Datasheet - RICOH

RP102N221D LOW NOISE 300mA LDO REGULATOR

RP102x SERIES LOW NOISE 300mA LDO REGULATOR NO.EA-141-160705 OUTLINE The RP102x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, a current limit circuit and a chip enable circuit. These ICs perform with low dropout voltage and "chip enable" function. The line transient response .

RP102N221D Features

* Supply Current Typ. 50A

* Standby Mode

RP102N221D Datasheet (372.06 KB)
