R1131N301B Datasheet, RICOH

R1131N301B regulator equivalent, ldo regulator.

R1131N301B Avg. rating / M : 1.0 rating-11

datasheet Download (Size : 2.22MB)

R1131N301B Datasheet

Features and benefits


* Supply Current ..................................................Typ. 80µA (VOUT < 1.8V) Typ. 60µA (VOUT > = 1.8V)
* Standby Mode ...............................

Application


* Precision Voltage References.
* Power source for electrical appliances such as cameras, VCRs and hand-held com.

Description


* SOT-23-5 Pin No. 1 2 3 4 5 Symbol VDD GND CE or CE
* Description Input Pin Ground Pin Chip Enable Pin No Connection Output pin SON-6,HSON-6 Pin No. 1 2 3 4 5 6 Symbol VDD NC VOUT NC GND CE or CE Description Input Pin No Connection Outpu.

Image gallery

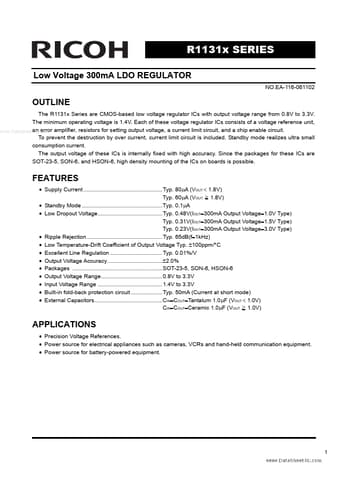

R1131N301B Page 1 R1131N301B Page 2 R1131N301B Page 3
