R1131D121A5 datasheet, regulator equivalent, RICOH

Avg. rating / M : 1.0 rating-1

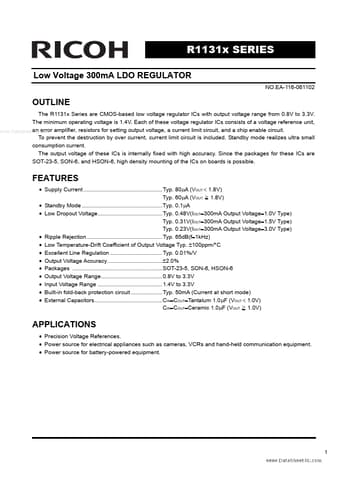

datasheet Download (Size : 2.22MB)

Features and benefits

* Supply Current Typ. 80µA (VOUT < 1.8V) Typ. 60µA (VOUT > = 1.8V)
* Standby Mode .Typ. 0.1µA
* Low Dropout Voltage.Typ. 0.48V(IOUT=300mA Output Voltage=1.0V .

Application

* Precision Voltage References.
* Power source for electrical appliances such as cameras, VCRs and hand-held com.

Description

* SOT-23-5 Pin No. 1 2 3 4 5 Symbol VDD GND CE or CE
* Description Input Pin Ground Pin Chip Enable Pin No Connection Output pin SON-6,HSON-6 Pin No. 1 2 3 4 5 6 Symbol VDD NC VOUT NC GND CE or CE Description Input Pin No Connection Outpu.
