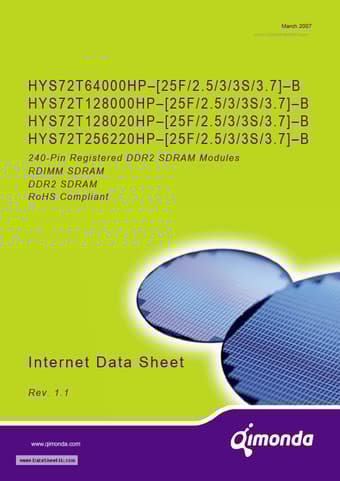

HYS72T64000HP3S-B
Overview
This chapter gives an overview of the 1.8 V 240-Pin Registered DDR2 SDRAM Modules with parity bit product family and describes its main characteristics.
Features
- -
- -
- -
- -
- - Programmable self refresh rate via EMRS2 setting Programmable partial array refresh via EMRS2 settings DCC enabling via EMRS2 setting All inputs and outputs SSTL_18 patible Off-Chip Driver Impedance Adjustment (OCD) and On-Die Termination (ODT) Serial Presence Detect with E2PROM RDIMM Dimensions (nominal): 30 mm high, 133.35 mm wide Based on standard reference card layouts Raw Card “F”, “G“, “H“, ”J” and “L“ All speed grades faster than DDR2- 400 ply with DDR2- 400 timing specifications. Ro HS pliant products1)
- 240-Pin PC2- 6400, PC2- 5300 and PC2- 4200 DDR2 SDRAM memory modules.
- One rank 64M ×72, 128M ×72, and two ranks 128M ×72, 256M ×72 module organization, and 512M ×8, 512M ×4 chip organization
- Registered DIMM Parity bit for address and control bus
- 512 MB, 1 GB, and 2 GB module built...
