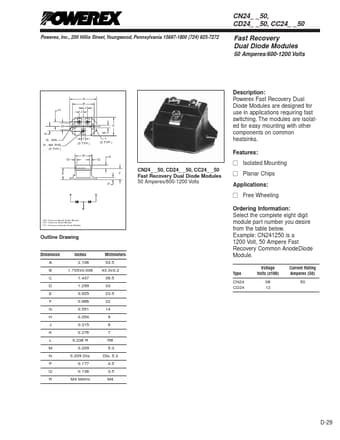

CD240650
Description
Powerex Fast Recovery Dual Diode Modules are designed for use in applications requiring fast switching. The modules are isolated for easy mounting with other components on common heatsinks.
Key Features
- Q K E P CN24_ _50, CD24_ _50, CC24_ _50 Fast Recovery Dual Diode Modules 50 Amperes/600-1200 Volts Ⅺ Planar Chips Applications: Ⅺ Free Wheeling Ordering Information: Select the complete eight digit module part number you desire from the table below. Example: CN241250 is a 1200 Volt, 50 Ampere Fast Recovery Common AnodeDiode Module. Type CN24 CD24 Voltage Volts (x100) 06 12 Current Rating Amperes (50) 50 CN-Common Anode Diode Module CD-Common Diode Module CC-Common Cathode Diode Module Outline Drawing Dimension A B C
- E F G H J K L M N P Q R Inches 2.106 1.705±0.008 1.437 1.299 0.925 0.866 0.551 0.354 0.315 0.276 0.236 R 0.209 0.209 Dia. 0.177 0.138 M4 Metric Millimeters 53.5 43.3±0.2 36.5 33 23.5 22 14 9 8 7 R6 5.3 Dia. 5.3 4.5 3.5 M4 D-29 Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 CN24_ _50, CD24_ _50, CC24_ _50 Fast Recovery Dual Diode Modules 50 Amperes/600-1200 Volts
