AN78M10F - 3-pin Positive Output Voltage Regulators

Panasonic Semiconductor

📥 Download Datasheet

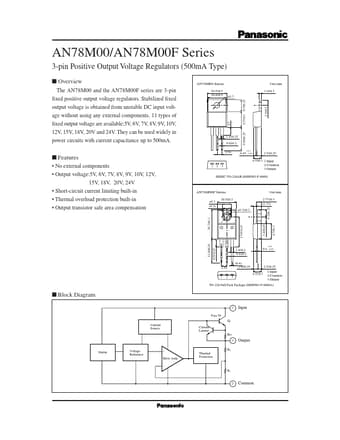

AN78M10F Datasheet Preview — Preview of AN78M10F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AN78M10F
Manufacturer	Panasonic ↗ Semiconductor
File Size	70.29 KB
Description	3-pin Positive Output Voltage Regulators
Datasheet	AN78M10F_PanasonicSemiconductor.pdf

AN78M10F Product details

Features

No external components.
Output voltage:5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V.
Short-circuit current limiting built-in.
Thermal overload protection built-in.
Output transistor safe area compensation 1 2 3 0.45.
0.05 2.5±0.25 4.5±0.3 1:Input 2:Common 3:Output JEDEC:TO-220AB (HSIP003-P-0000) AN78M00F Series ø5.3 (4.3) 10.5±0.3 ø3.1±0.1 Unit:mm 2.77±0.3 (1.73) 4.2±0.25 3.8±0.25 4.5±0.3 + 0.1 16.7±0.3 17.0±0.25 13.6±0.25 4.5±0.
