TX2-1.5V-TH

The TX2-1.5V-TH is TX RELAYS designed by Panasonic.

Product Overview

Panasonic

Part number	TX2-1.5V-TH
Manufacturer	Panasonic
File Size	53.04 KB
Description	TX RELAYS
Datasheet	TX2-1.5V-TH-Panasonic.pdf

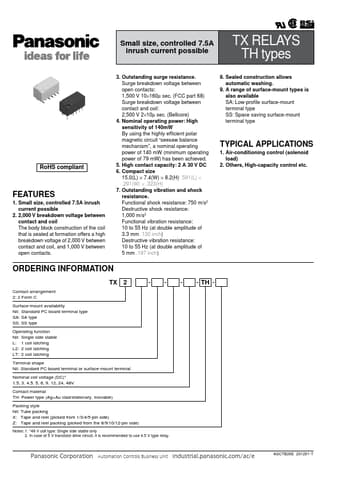

Additional preview pages of the TX2-1.5V-TH datasheet.

1. Small size, controlled 7.5A inrush current possible 2. 2,000 V breakdown voltage between contact and coil The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V between open contacts. 3. Outstanding surge resistance. Surge breakdown voltage between open contacts: 1,500 V 10×160µ sec. (FCC part 68) Surge breakdown voltage between contact and coil: 2,500 V 2×10µ sec. (Bellcore) 4. Nominal operating po.
