TQ2SL-L-6V Datasheet SMD RELAYS

Manufacturer: Panasonic

Download the TQ2SL-L-6V datasheet PDF. This datasheet also includes the TQ2SA-1.5V variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

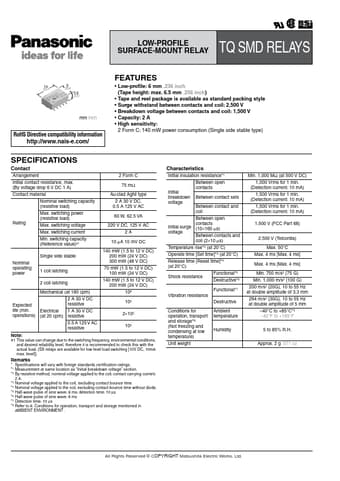

TQ2SL-L-6V smd relays by Panasonic - Datasheet Preview — Note: The manufacturer provides a single datasheet file (TQ2SA-1.5V-Panasonic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	TQ2SL-L-6V
Manufacturer	Panasonic
File Size	129.37 KB
Description	SMD RELAYS
Download	TQ2SL-L-6V Download (PDF)

Overview

TQ SMD TESTING LOW-PROFILE TQ SMD RELAYSSURFACE-MOUNT RELAY 14 .551 9 .354 5.6 .220 mm inch RoHS Directive compatibility information http://www.nais-e.

Key Features

Low-proﬁle: 6 mm .236 inch (Tape height: max. 6.5 mm .256 inch).
Tape and reel package is available as standard packing style.
Surge withstand between contacts and coil: 2,500 V.
Breakdown voltage between contacts and coil: 1,500 V.
Capacity: 2 A.
High sensitivity: 2 Form C; 140 mW power consumption (Single side stable type).
