TQ2SL-L-3V
TQ2SL-L-3V is SMD RELAYS manufactured by Panasonic.
- Part of the TQ2SA-1.5V comparator family.
- Part of the TQ2SA-1.5V comparator family.
TQ SMD
TESTING
LOW-PROFILE

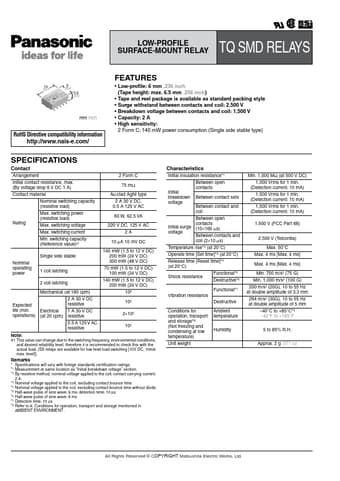

TQ SMD RELAYSSURFACE-MOUNT RELAY
14 .551
9 .354
5.6 .220 mm inch
Ro HS Directive patibility information http://.nais-e./
Features
- Low-profile: 6 mm .236 inch (Tape height: max. 6.5 mm .256 inch)
- Tape and reel package is available as standard packing style
- Surge withstand between contacts and coil: 2,500 V
- Breakdown voltage between contacts and coil: 1,500 V
- Capacity: 2 A
- High sensitivity:
2 Form C; 140 m W power consumption (Single side stable type)
SPECIFICATIONS
Contact
Arrangement
2 Form C
Initial contact resistance, max. (By voltage drop 6 V DC 1 A)
75 mΩ
Contact material
Au-clad Ag Ni type
Nominal switching capacity (resistive load)
2 A 30 V DC, 0.5 A 125 V AC
Rating
Max. switching power (resistive load)
Max. switching voltage
60 W, 62.5 VA 220 V DC, 125 V...
