EEEFK1A821SP - Aluminum Electrolytic Capacitors

Download the EEEFK1A821SP datasheet PDF (EEEFK0J271SP included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for aluminum electrolytic capacitors.

Features

  • Endurance: 2000 h at 105 ℃ 1 size smaller than series FK Vibration-proof product is available upon request. (φ8 mm and larger) AEC-Q200 qualified.
  • RoHS directive compliant Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ Characteristics at Low Temperature -55 ℃ to +105 ℃ 6.3 V. DC to 50 V. DC 39 μF to 1800 μF ±20 % (120 Hz/+20 ℃) l ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached Sta.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EEEFK0J271SP-Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

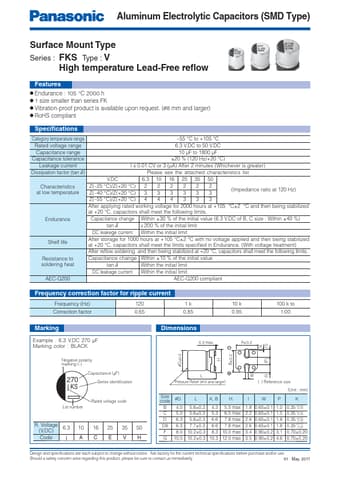

Aluminum Electrolytic Capacitors/FKS Surface Mount Type Series: FKS Type: V High temperature Lead-Free reflow Features Endurance: 2000 h at 105 ℃ 1 size smaller than series FK Vibration-proof product is available upon request. (φ8 mm and larger) AEC-Q200 qualified* RoHS directive compliant Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan δ Characteristics at Low Temperature -55 ℃ to +105 ℃ 6.3 V.DC to 50 V.DC 39 μF to 1800 μF ±20 % (120 Hz/+20 ℃) l ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater) Please see the attached Standard Products list W.V.(V) 6.
