ECQUAAF335S - Plastic Film Capacitors

Download the ECQUAAF335S datasheet PDF. This datasheet also covers the ECQUAAF104T variant, as both devices belong to the same plastic film capacitors family and are provided as variant models within a single manufacturer datasheet.

Features

  • AEC-Q200 compliant.
  • High safety (safety function installed).
  • High humidity resistance (THB test : 85 °C, 85 %, 240 V. AC, 1000 h ).
  • High Thermal shock resistance （-40 ⇔ 85℃，1000 cycles）.
  • Flame-retardant plastic case and non-combustible resin.
  • RoHS compliant Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ECQUAAF104T-Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ECQU2AN Plastic Film Capacitors Panasonic Semiconductor
ECQ10A03L-F Schottky Barrier Diode Kyocera
ECQ10A03L-F SBD Nihon Inter Electronics
ECQ10A04-F Schottky Barrier Diode Kyocera
ECQ10A04-F SBD Nihon Inter Electronics

Other Datasheets by Panasonic

Part Number Description
ECQUAAF335T Plastic Film Capacitors
ECQUAAF334S Plastic Film Capacitors
ECQUAAF334T Plastic Film Capacitors
ECQUAAF104S Plastic Film Capacitors
ECQUAAF104T Plastic Film Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

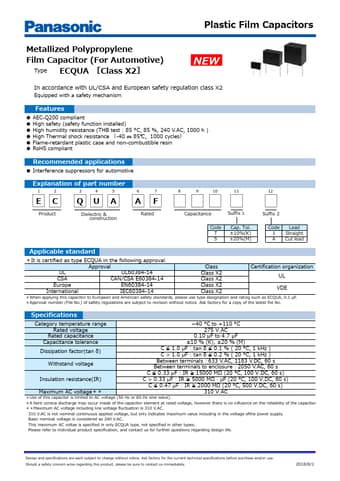

Plastic Film Capacitors Metallized Polypropylene Film Capacitor (For Automotive) Type ECQUA　［Class X2］ NEW In accordance with UL/CSA and European safety regulation class X2 Equipped with a safety mechanism Features ● AEC-Q200 compliant ● High safety (safety function installed) ● High humidity resistance (THB test : 85 °C, 85 %, 240 V.AC, 1000 h ) ● High Thermal shock resistance （-40 ⇔ 85℃，1000 cycles） ● Flame-retardant plastic case and non-combustible resin ● RoHS compliant Recommended applications ● Interference suppressors for automotive Explanation of part number 12 34 5 E C QUA Product Dielectric & construction 67 AF Rated 8 9 10 11 12 Capacitance Suffix 1 Code T S Cap. Tol.
