ALE14F48, ALE12B05 - 1 Form A 16A power relay

Panasonic

Datasheet Details

Part number: ALE14F48, ALE12B05
Manufacturer: Panasonic
File Size: 209.97 KB
Datasheet: ALE12B05-Panasonic.pdf
Description: 1 Form A 16A power relay
Note: This datasheet PDF includes multiple part numbers: ALE14F48, ALE12B05.
Please refer to the document for exact specifications by model.

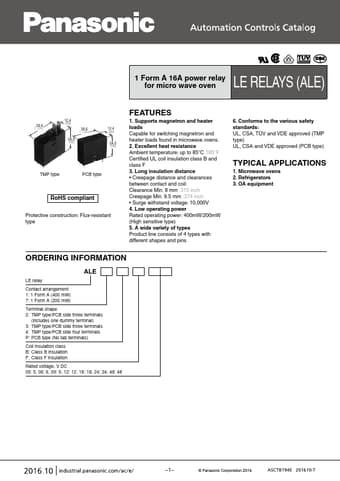

1. Supports magnetron and heater loads Capable for switching magnetron and heater loads found in microwave ovens. 2. Excellent heat resistance Ambient temperature: up to 85°C 185°F Certiﬁed UL coil insulation class B and class F 3. Long insulation distance.
Creepage distance and clearances between contact and coil: Clearance Min. 8 mm .315 inch Creepage Min. 9.5 mm .374 inch.
Surge withstand voltage: 10,000V 4. Low operating power Rated operating power: 400mW/200mW (High sensit.
