OCA7210A - 3Watts Class-D Audio Power Amplifier

Description

The OCA7210A is a 3W high efficiency filter-free class-D audio power amplifier that requires only three external components.

Features

  • like 88% efficiency,.
  • 75-dB PSRR, improved RF-rectification immunity, and 8 mm2 total PCB area make the OCA7210A ideal for cellular handsets. A fast start-up time of 1ms with minimal pop makes the OCA7210A ideal for PDA.

📥 Download Datasheet

Datasheet Details

Part number OCA7210A
Manufacturer Orient Chip
File Size 131.88 KB
Description 3Watts Class-D Audio Power Amplifier
Datasheet download datasheet OCA7210A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OCA7237 Multi-level Constant Output Power Class D Audio Amplifier ORIENT-CHIP

Other Datasheets by Orient Chip

Part Number Description
OCA7210 2.5Watts Audio Power Amplifier
OCA7220 3W Filterless Mono ClassD Audio Power Amplifier
OCA7220A 3W Filter-less Mono Class-D Audio Power Amplifier
OCA7890A 2.4Watt Class AB Audio Power Amplifier

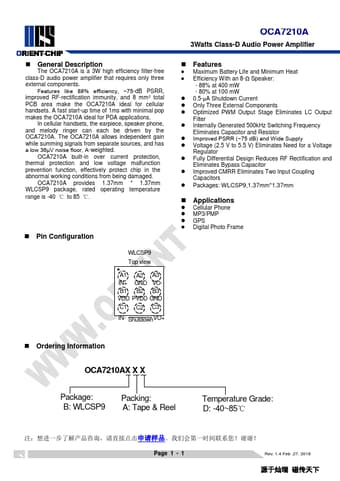

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
◼ General Description The OCA7210A is a 3W high efficiency filter-free class-D audio power amplifier that requires only three external components. Features like 88% efficiency, −75-dB PSRR, improved RF-rectification immunity, and 8 mm2 total PCB area make the OCA7210A ideal for cellular handsets. A fast start-up time of 1ms with minimal pop makes the OCA7210A ideal for PDA applications. In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the OCA7210A. The OCA7210A allows independent gain while summing signals from separate sources, and has a low 36μV noise floor, A-weighted.
