NSV45030T1G - Constant Current Regulator & LED Driver

Datasheet Summary

Features

  • Robust Power Package: 460 mW.
  • Wid.

📥 Download Datasheet

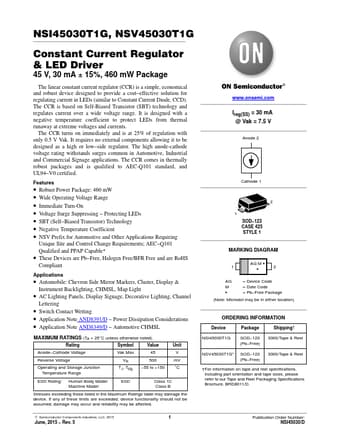

Datasheet preview – NSV45030T1G

Datasheet Details

Part number NSV45030T1G
Manufacturer ON Semiconductor
File Size 150.63 KB
Description Constant Current Regulator & LED Driver
Datasheet download datasheet NSV45030T1G Datasheet
Additional preview pages of the NSV45030T1G datasheet.

📁 Similar Datasheet

  • NSVA253 - SAW FILTER (New Japan Radio)
  • NSVA254 - SAW FILTER (New Japan Radio)
  • NSVA276 - SAW FILTER (New Japan Radio)
  • NSVA277 - SAW FILTER (New Japan Radio)
  • NSVA279 - SAW FILTER (New Japan Radio)
  • NSVA288 - JRC SAW FILTER (ETC)
  • NSVA288 - SAW FILTER (New Japan Radio)
  • NSVA300 - SAW FILTER (New Japan Radio)
  • NSVA301 - SAW FILTER (New Japan Radio)
  • NSVA321 - SAW FILTER (New Japan Radio)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
NSI45030T1G, NSV45030T1G Constant Current Regulator & LED Driver 45 V, 30 mA + 15%, 460 mW Package The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost−effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents. The CCR turns on immediately and is at 25% of regulation with only 0.5 V Vak. It requires no external components allowing it to be designed as a high or low−side regulator.
