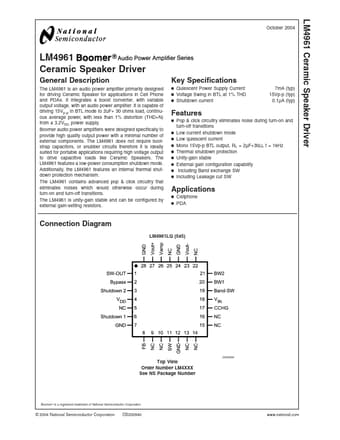

LM4961 Datasheet | National Semiconductor

Description The LM4961 is an audio power amplifier primarily designed for driving Ceramic Speaker for applications in Cell Phone and PDAs. It integrates a boost converter, with variable output voltage, with an audio power amplifier. It is capable of driving 15Vp-p in BTL mode to 2u F+ 30 ohms load, continuous average power, with less than 1% distortion (THD+N) from a 3.2VDC power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal number of external ponents. The LM4961 does not require bootstrap capacitors, or snubber circuits therefore it is ideally suited for portable applications requiring high voltage output to drive capacitive loads like Ceramic Speakers. The LM4961 features a low-power consumption shutdown mode. Additionally, the LM4961 features an internal thermal shutdown protection mechanism. The LM4961 contains advanced pop & click circuitry that eliminates noises which would otherwise occur during turn-on and turn-off transitions. The LM4961 is unity-gain stable and can be configured by external gain-setting resistors. Key Specifications n Quiescent Power Supply Current n Voltage Swing in BTL at 1% THD n Shutdown current 7m A (typ) 15Vp-p (typ) 0.1µA (typ) Features n Pop & click circuitry eliminates noise during turn-on and turn-off transitions n Low current shutdown mode n Low quiescent current n Mono 15Vp-p BTL output, RL = 2µF+30Ω, f = 1k Hz n Thermal shutdown protection n Unity-gain stable n External gain configuration capability n Including Band exchange SW n Including Leakage cut SW Applications n Cellphone n PDA Connection Diagram LM4961LQ (5x5) Top View Order Number LM4XXX See NS Package Number Boomer ® is a registered trademark of National Semiconductor Corporation. © 2004 National Semiconductor Corporation DS200940 .national. Typical Application - RC is needed for over/under voltage protection. If inputs are less than VDD +0.3V and greater than -...
