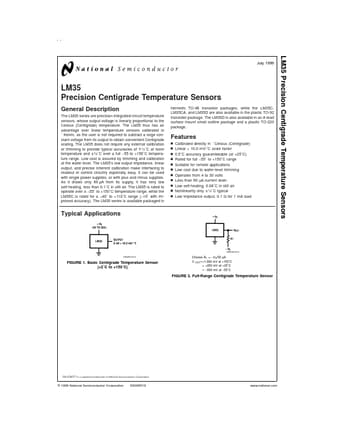

LM35 Precision Centigrade Temperature Sensors

The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35 thus has an advantage over linear temperature sensors calibrated in ˚ Kelvin, as the user is not required to subtract a large constant.

LM35 Features

* n n n n n n n n n n n Calibrated directly in ˚ Celsius (Centigrade) Linear + 10.0 mV/˚C scale factor 0.5˚C accuracy guaranteeable (at +25˚C) Rated for full

* 55˚ to +150˚C range Suitable for remote applications Low cost due to wafer-level trimming Operates from 4 to 30 volts Less than 60 µA c
