LM2630 - Synchronous Step-Down Power Supply Controller

General Description

The LM2630 controller provides all the active functions for step-down (buck) switching converters.

These dc-to-dc converters provide core CPU power in battery-operated systems.

High efficiency is achieved by using synchronous rectification and pulse-skipping mode operation at light load.

Key Features

  • include the external synchronization pin, and the PGOOD pin to indicate the state of the output voltage. Protection circuitry includes thermal shutdown, undervoltage shut down, soft-start capability, and two levels of current limits: The first level simply limits the load current directly; at the second level, if the load pulls the output voltage down below 80% of the regulated value, the chip willshut down. This latched operation is disabled during startup, but an internal timer will enable it.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM2633 Advanced Two-Phase Synchronous Triple Regulator Controller Texas Instruments
LM2638 Motherboard Power Supply Solution Texas Instruments
LM26 Factory-Preset Thermostat Texas Instruments
LM26001 1.5-A Switching Regulator Texas Instruments
LM26001-Q1 1.5-A Switching Regulator Texas Instruments

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LM2631 Synchronous Step-Down Power Supply Controller
LM2633 Advanced Two-Phase Synchronous Triple Regulator Controller
LM2635 5-Bit Programmable Synchronous Buck Regulator Controller
LM2636 5-Bit Programmable Synchronous Buck Regulator Controller
LM2637 Motherboard Power-Supply Solution

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

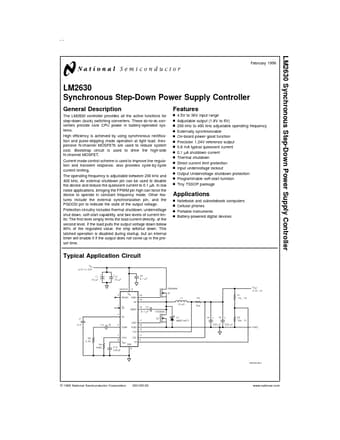

LM2630 Synchronous Step-Down Power Supply Controller February 1999 LM2630 Synchronous Step-Down Power Supply Controller General Description The LM2630 controller provides all the active functions for step-down (buck) switching converters. These dc-to-dc converters provide core CPU power in battery-operated systems. High efficiency is achieved by using synchronous rectification and pulse-skipping mode operation at light load. Inexpensive N-channel MOSFETs are used to reduce system cost. Bootstrap circuit is used to drive the high-side N-channel MOSFET. Current mode control scheme is used to improve line regulation and transient response, also provides cycle-by-cycle current limiting. The operating frequency is adjustable between 200 kHz and 400 kHz.
