NTE
NTE

2N5685 Datasheet Preview

2N5685 Datasheet

Silicon NPN Transistor

No Preview Available !

2N5685 pdf

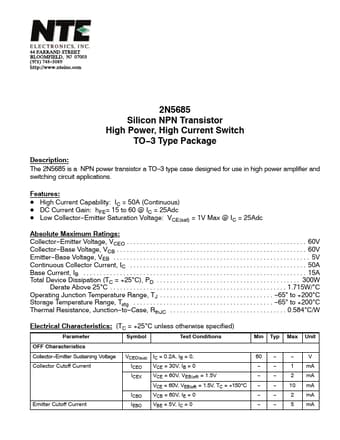

2N5685
Silicon NPN Transistor
High Power, High Current Switch
TO3 Type Package
Description:
The 2N5685 is a NPN power transistor a TO3 type case designed for use in high power amplifier and
switching circuit applications.
Features:
D High Current Capability: IC = 50A (Continuous)
D DC Current Gain: hFE= 15 to 60 @ IC = 25Adc
D Low CollectorEmitter Saturation Voltage: VCE(sat) = 1V Max @ IC = 25Adc
Absolute Maximum Ratings:
CollectorEmitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60V
CollectorBase Voltage, VCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60V
EmitterBase Voltage, VEB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Continuous Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50A
Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A
Total
DDeveircaeteDAisbsoipvaeti2o5n(CTC.
=
..
.+.2.5..C.).,.P. D. .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . 300W
1.715W/C
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65to +200C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65to +200C
Thermal Resistance, JunctiontoCase, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.584C/W
Electrical Characteristics: (TC = +25C unless otherwise specified)
Parameter
Symbol
Test Conditions
Min Typ Max Unit
OFF Characteristics
CollectorEmitter Sustaining Voltage
Collector Cutoff Current
Emitter Cutoff Current
VCEO(sus)
ICEO
ICEX
ICBO
IEBO
IC = 0.2A, IB = 0,
VCE = 30V, IB = 0
VCE = 60V, VEB(off) = 1.5V
VCE = 60V, VEB(off) = 1.5V, TC = +150C
VCB = 60V, IE = 0
VBE = 5V, IC = 0
60
V
1 mA
2 mA
10 mA
2 mA
5 mA



NTE
NTE

2N5685 Datasheet Preview

2N5685 Datasheet

Silicon NPN Transistor

No Preview Available !

2N5685 pdf
Electrical Characteristics (Cont’d): (TC = +25C unless otherwise specified)
Parameter
Symbol
Test Conditions
Min Typ Max Unit
ON Characteristics
DC Current Gain
CollectorEmitter Saturation Voltage
BaseEmitter Saturation Voltage
BaseEmitter ON Voltage
Dynamic Characteristics
hFE
VCE(sat)
VBE(sat)
VBE(on)
IC = 25A, VCE = 2V, Note 1
IC = 50A, VCE = 5V, Note 1
IC = 25A, IB = 2.5A, Note 1
IC = 50A, IB = 10A, Note 1
IC = 25A, IB = 2.5A
IC = 25A, VCE = 2V
15 60
5− −
−− 1 V
−− 5 V
−− 2 V
−− 2 V
Current GainBandwidth Product
Output Capacitance
SmallSignal Current Gain
fT IC = 5A, VCE = 10V, f = 1MHz 2 − − MHz
Cob VCB = 10V, IE = 0, f = 0.1MHz − − 2000 pF
hfe IC = 10A, VCE = 5V, f = 1kHz 15
Note 1. Pulse Test: Pulse Width 300s, Duty Cycle 2%.
.350 (8.89)
.135 (3.45) Max
.875 (22.2)
Dia Max
Seating
Plane
.312 (7.93) Min
.063 (1.6) Max
Emitter
1.187 (30.16)
.215 (5.45)
.430
(10.92)
.665
(16.9)
.156 (3.96) Dia
(2 Holes)
.188 (4.8) R Max
Base
.525 (13.35) R Max
Collector/Case


Part Number 2N5685
Description Silicon NPN Transistor
Maker NTE
Total Page 2 Pages
