HRA-S-DC5V - Subminiature PCB Relays

Download the HRA-S-DC5V datasheet PDF. This datasheet also covers the HRAH-S-DC3V variant, as both devices belong to the same subminiature pcb relays family and are provided as variant models within a single manufacturer datasheet.

General Description

Nominal Voltage (V dc) Relay, PCB, SPCO, 5V DC 5 Relay, PCB, SPCO, 12V DC 12 Relay, PCB, SPCO, 24V DC 24 Relay, PCB, SPCO, 5V DC 5 Relay, PCB, SPCO, 12V DC 12 Relay, PCB, SPCO, 24V DC 24 Part Number Explanation: HRA H Coil Resistance (Ω ±10%) 55 320 1280 75 440 1515 S Operating Vol

Key Features

  • SPCO series of relays.
  • Small size and light weight.
  • Plastic sealed (washable).
  • DIL pitch terminal. Dimensions Specifications: Contact Data Contact arrangement Contact material Maximum switching voltage Maximum switching current Maximum switching power : SPCO (1 Form C). : AuAg. : 30V dc/120V ac. : 2.0A. : 120VA/30W. http://www. farnell. com http://www. newark. com http://www. cpc. co. uk Page Dimensions : Millimetres 06/05/10 V1.1 HRA Series Subminiatu.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HRAH-S-DC3V_Multicomp.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HRA-S-DC5V
Manufacturer Multicomp
File Size 249.67 KB
Description Subminiature PCB Relays
Datasheet download datasheet HRA-S-DC5V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HRA-S-DC5V Relay ETC
HRA-S-DC5V Relay (Ch. ver) ETC
HRA-S-DC12V Relay ETC
HRA-S-DC12V Relay (Ch. ver) ETC
HRA-S-DC24V Relay ETC

Other Datasheets by Multicomp

Part Number Description
HRA-S-DC5V-C Subminiature Power Relays
HRA-S-DC12V Subminiature PCB Relays
HRA-S-DC12V-C Subminiature Power Relays
HRA-S-DC24V Subminiature PCB Relays
HRA-S-DC24V-C Subminiature Power Relays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

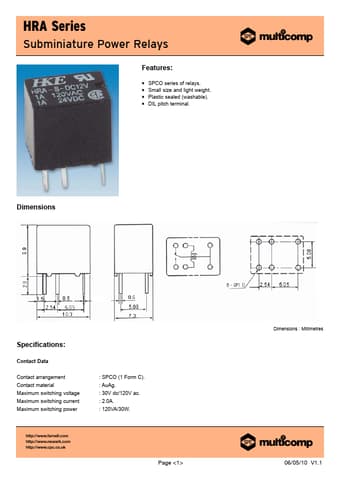

HRA Series Subminiature Power Relays Features: • SPCO series of relays. • Small size and light weight. • Plastic sealed (washable). • DIL pitch terminal. Dimensions Specifications: Contact Data Contact arrangement Contact material Maximum switching voltage Maximum switching current Maximum switching power : SPCO (1 Form C). : AuAg. : 30V dc/120V ac. : 2.0A. : 120VA/30W. http://www.farnell.com http://www.newark.com http://www.cpc.co.uk Page <1> Dimensions : Millimetres 06/05/10 V1.1 HRA Series Subminiature Power Relays Specifications: Contact resistance Life expectancy Mechanical : 50mΩ. : Electrical : 100,000 operations. : Mechanical : 10,000,000 operations.
