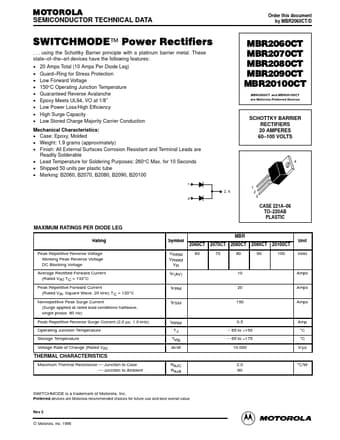

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by MBR2060CT/D
SWITCHMODE™ Power Rectifiers
. . . using the Schottky Barrier principle with a platinum barrier metal. These state–of–the–art devices have the following features: • • • • • • • • • 20 Amps Total (10 Amps Per Diode Leg) Guard–Ring for Stress Protection Low Forward Voltage 150°C Operating Junction Temperature Guaranteed Reverse Avalanche Epoxy Meets UL94, VO at 1/8″ Low Power Loss/High Efficiency High Surge Capacity Low Stored Charge Majority Carrier Conduction
MBR2060CT MBR2070CT MBR2080CT MBR2090CT MBR20100CT
MBR2060CT and MBR20100CT are Motorola Preferred Devices
Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 1.
