MAX9217 - DC-Balanced LVDS Serializer

Description

The MAX9217 digital video parallel-to-serial converter serializes 27 bits of parallel data into a serial data stream.

Eighteen bits of video data and 9 bits of control data are encoded and multiplexed onto the serial interface, reducing the serial data rate.

Features

  • a separate input supply for interfacing to 1.8V to 3.3V logic levels. This device is available in 48-lead Thin QFN and TQFP packages and is specified from -40°C to +85°C. Features o Proprietary Data Encoding for DC Balance and Reduced EMI o Control Data Sent During Video Blanking o Five Control Data Inputs Are Single-Bit-Error Tolerant o Programmable Phase-Shifted LVDS Signaling Reduces EMI o Output Common-Mode Filter Reduces EMI o Greater than 10m STP Cable Drive o Wide ±2% Reference Clock Tol.

📥 Download Datasheet

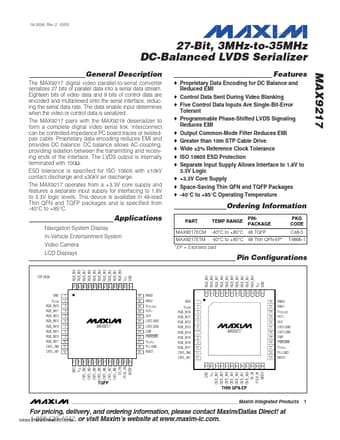

Datasheet preview – MAX9217

📁 Similar Datasheet

  • MAX921 - Ultra Low-Power / Single/Dual-Supply Comparators (Maxim)
  • MAX9213 - Programmable DC-Balanced 21-Bit Serializers (Maxim Integrated)
  • MAX920 - Beyond-the-Rails Comparators (Maxim)
  • MAX9209 - Programmable DC-Balanced 21-Bit Serializers (Maxim Integrated)
  • MAX922 - Ultra Low-Power / Single/Dual-Supply Comparators (Maxim)
  • MAX923 - Ultra Low-Power / Single/Dual-Supply Comparators (Maxim)
  • MAX924 - Single/Dual-Supply Comparators (Maxim)
  • MAX9263 - HDCP Gigabit Multimedia Serial Link Serializer/Deserializer (Maxim Integrated)
  • MAX9264 - HDCP Gigabit Multimedia Serial Link Serializer/Deserializer (Maxim Integrated)
  • MAX9271 - 16-Bit GMSL Serializer (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX9210 - Programmable DC-Balance 21-Bit Deserializers
  • MAX9211 - Programmable DC-Balanced 21-Bit Serializers
  • MAX9212 - Programmable DC-Balance 21-Bit Deserializers
  • MAX9214 - Programmable DC-Balance 21-Bit Deserializers
  • MAX9215 - Programmable DC-Balanced 21-Bit Serializers
  • MAX9216 - Programmable DC-Balance 21-Bit Deserializers
  • MAX9218 - DC-Balanced LVDS Deserializer
  • MAX9201 - Low-Power Voltage Comparators

Full PDF Text Transcription

Click to expand full text
19-3558; Rev 2; 10/05 www.DataSheet4U.com 27-Bit, 3MHz-to-35MHz DC-Balanced LVDS Serializer General Description The MAX9217 digital video parallel-to-serial converter serializes 27 bits of parallel data into a serial data stream. Eighteen bits of video data and 9 bits of control data are encoded and multiplexed onto the serial interface, reducing the serial data rate. The data enable input determines when the video or control data is serialized. The MAX9217 pairs with the MAX9218 deserializer to form a complete digital video serial link. Interconnect can be controlled-impedance PC board traces or twistedpair cable. Proprietary data encoding reduces EMI and provides DC balance. DC balance allows AC-coupling, providing isolation between the transmitting and receiving ends of the interface.
