IS31LT3171, IS31LT3170 - 10-TO-150MA CONSTANT-CURRENT LED DRIVER

Lumissil

📥 Download Datasheet

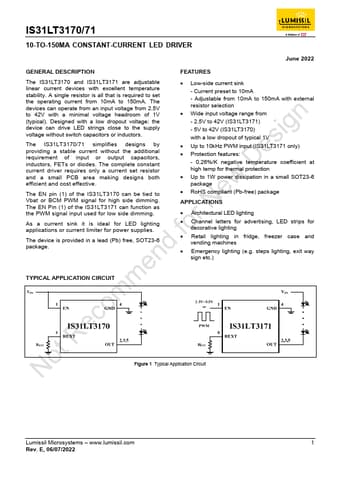

IS31LT3171 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS31LT3171, IS31LT3170. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IS31LT3171, IS31LT3170
Manufacturer	Lumissil
File Size	692.84 KB
Description	10-TO-150MA CONSTANT-CURRENT LED DRIVER
Datasheet	IS31LT3170-Lumissil.pdf
Note	This datasheet PDF includes multiple part numbers: IS31LT3171, IS31LT3170. Please refer to the document for exact specifications by model.

IS31LT3171 Product details

Description

The IS31LT3170 and IS31LT3171 are adjustable linear current devices with excellent temperature stability.

Features

Low-side current sink - Current preset to 10mA - Adjustable from 10mA to 150mA with external resistor selection.
Wide input voltage range from - 2.5V to 42V (IS31LT3171) - 5V to 42V (IS31LT3170) with a low dropout of typical 1V.
Up to 10kHz PWM input (IS31LT3171 only).
Protection features: - 0.26%/K negative temperature coefficient at high temp for thermal protection.
Up to 1W power dissipation in a small SOT23-6 package.
RoHS compliant (Pb-.
