P6SMB75CA TVS Diodes

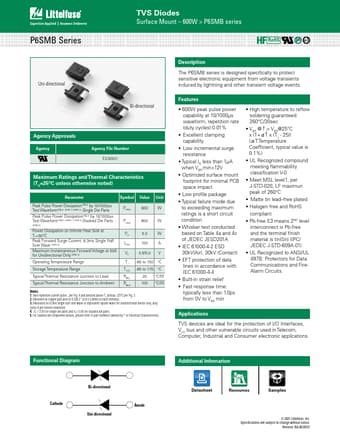

P6SMB Series TVS Diodes Surface Mount 600W > P6SMB series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note 1),(Note 2) -Single Die Parts Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note.1, Note.2)-Stacked Die Parts (Note.5) PP.

P6SMB75CA Features

* 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Excellent clamping capability

* Low incremental surge resistance

* Typical IR less than 1μA when VBR min>12V

* Optimized surface mount footprint for minimal PCB s

P6SMB75CA, P6SMB6.8A Datasheet
