885 - Surface Mount Fuses

General Description

The 885 Nano2® Surface Mount Fuses are high voltage rated fuses with high interrupting current ratings at 450VDC/500VDC and 350VAC.

It complies with IEC 60127-7 Standard.

Key Features

  • Heat resistant plastic housing, UL 94 V-0.
  • Meets Littelfuse's Automotive qualifications.
  • High pulse resistance.
  • Lead-free -- compatible with lead-free solders and higher temperature profiles.
  • Low voltage drop.
  • Available in ratings of 1A.
  • Internationally approved to 5A.
  • Largely based on Littelfuse internal AECQ-200 test plan.

📥 Download Datasheet

Datasheet Details

Part number 885
Manufacturer Littelfuse
File Size 597.97 KB
Description Surface Mount Fuses
Datasheet download datasheet 885 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
885007 ISM Passband Filter TriQuint Semiconductor
885008 ISM Notch Filter TriQuint Semiconductor
885010 ISM Notch Filter TriQuint Semiconductor
885070 2437 MHz BAW Filter qorvo
885128 WLAN/BT LTE Co-Existence Filter qorvo

Other Datasheets by Littelfuse

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

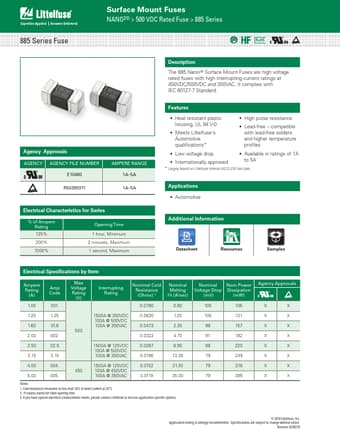

885 Series Fuse Surface Mount Fuses NANO2® > 500 VDC Rated Fuse > 885 Series Pb RoHS Agency Approvals AGENCY AGENCY FILE NUMBER E10480 R50395911 AMPERE RANGE 1A–5A 1A–5A Electrical Characteristics for Series % of Ampere Rating 125% 200% 1000% Opening Time 1 hour, Minimum 2 minutes, Maximum 1 second, Maximum Description The 885 Nano2® Surface Mount Fuses are high voltage rated fuses with high interrupting current ratings at 450VDC/500VDC and 350VAC. It complies with IEC 60127-7 Standard.
