470 - Surface Mount Fuses

General Description

The 470 series is a family of 125V rated high energy SMD fuses, perfect for space constrained applications.

It offers the standard Nano Fuse circuit protection capability with a very small 1206 foot print.

Key Features

  • Very Small 1206 Footprint.
  • 125V Voltage Rating.
  • Fast-Acting.
  • Pb-Free, RoHS Compliant and Halogen-Free.
  • Wide Operating temperature range of -55°C to 125°C ENERGY STAR® Surge Immunity test compliant (100kHz Ring Wave, 2.5kV, 7 strikes common and differential modes) - 1.5A and above ampere rating only.

📥 Download Datasheet

Datasheet Details

Part number 470
Manufacturer Littelfuse
File Size 420.38 KB
Description Surface Mount Fuses
Datasheet download datasheet 470 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
4700 Capacitor / Aluminum Electrolytic EPCOS
4700 Numeric Displays Excel Technology International
470KD05JX Varistor Micro Commercial Components
470KD05NX Varistor Micro Commercial Components
470KD07 Metal Oxide Varistors BrightKing

Other Datasheets by Littelfuse

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

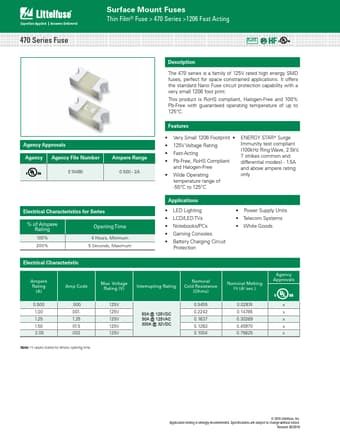

470 Series Fuse Surface Mount Fuses Thin Film® Fuse > 470 Series >1206 Fast Acting RoHS Pb Agency Approvals Agency Agency File Number E10480 Ampere Range 0.500 - 2A Electrical Characteristics for Series % of Ampere Rating 100% 200% Opening Time 4 Hours, Minimum 5 Seconds, Maximum Description The 470 series is a family of 125V rated high energy SMD fuses, perfect for space constrained applications. It offers the standard Nano Fuse circuit protection capability with a very small 1206 foot print. This product is RoHS compliant, Halogen-Free and 100% Pb-Free with guaranteed operating temperature of up to 125°C.
