LTPL-C034UVH430 - C03 UV LED

Download the LTPL-C034UVH430 datasheet PDF. This datasheet also covers the LTPL-C034UVH430-LITE variant, as both devices belong to the same c03 uv led family and are provided as variant models within a single manufacturer datasheet.

Description

The LiteON C03 UV Product series is a revolutionary, energy efficient light source for UV curing and common UV application, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional light source.

Features

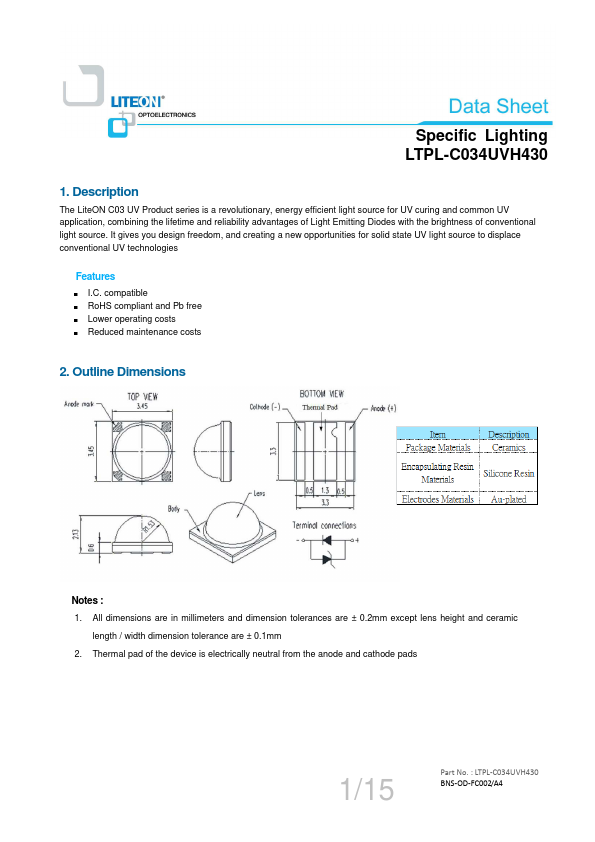

  • I. C. compatible RoHS compliant and Pb free Lower operating costs Reduced maintenance costs 2. Outline Dimensions Notes : 1. All dimensions are in millimeters and dimension tolerances are ± 0.2mm except lens height and ceramic length / width dimension tolerance are ± 0.1mm 2. Thermal pad of the device is electrically neutral from the anode and cathode pads 1/15 Part No. : LTPL-C034UVH430 BNS-OD-FC002/A4 3. Absolute Maximum Ratings at Ta=25°C Specific Lighting LTPL-C034UVH430 Parameter Symb.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTPL-C034UVH430-LITE-ONElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LTPL-C034UVH430
Manufacturer LITE-ON Electronics
File Size 479.35 KB
Description C03 UV LED
Datasheet download datasheet LTPL-C034UVH430 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTPL-C034UVD365 Specific Lighting LITEON
LTPL-C034UVG365 Specific Lighting LITEON
LTPL-C0675WPYB SMD LED LITE-ON
LTPL-C0676WPGB SMD LED LITEON
LTPL-C0677WPGB SMD LED LITEON

Other Datasheets by LITE-ON Electronics

Part Number Description
LTPL-C034UVH405 C03 UV LED HIGH POWER
LTPL-C034UVH410 C03 UV LED
LTPL-C034UVH365 C03 UV LED HIGH POWER
LTPL-C034UVH375 C03 UV LED
LTPL-C034UVH385 C03 UV LED HIGH POWER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Specific Lighting Product Data Sheet LTPL-C034UVH430 Spec No. :DS23-2016-0024 Effective Date: 08/29/2017 Revision: B LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Specific Lighting LTPL-C034UVH430 1. Description The LiteON C03 UV Product series is a revolutionary, energy efficient light source for UV curing and common UV application, combining the lifetime and reliability advantages of Light Emitting Diodes with the brightness of conventional light source. It gives you design freedom, and creating a new opportunities for solid state UV light source to displace conventional UV technologies Features I.C.
