MURS140 - SURFACE MOUNT SUPER FAST RECTIFIERS

Download the MURS140 datasheet PDF. This datasheet also covers the MURS140-LITE variant, as both devices belong to the same surface mount super fast rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass passivated chip Super fast switching for high efficiency For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MURS140-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MURS140
Manufacturer LITEON
File Size 62.78 KB
Description SURFACE MOUNT SUPER FAST RECTIFIERS
Datasheet download datasheet MURS140 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MURS140 Ultra-fast Plastic Rectifiers CYStech Electronics
MURS140 SURFACE MOUNT RECTIFIERS GALAXY ELECTRICAL
MURS140 SURFACE MOUNT ULTRA FAST RECTIFIER EIC
MURS140 1.0A SURFACE MOUNT SUPER-FAST RECTIFIER Diodes Incorporated
MURS140 Surface Mount Rectifiers Luguang Electronic

Other Datasheets by LITEON

Part Number Description
MURS120 SURFACE MOUNT SUPER FAST RECTIFIERS
MURS160 SURFACE MOUNT SUPER FAST RECTIFIERS
MURS360B SURFACE MOUNT SUPER FAST RECTIFIERS
MURS460C SURFACE MOUNT SUPER FAST RECTIFIERS
MUR460E SUPER FAST GLASS PASSIVATED RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

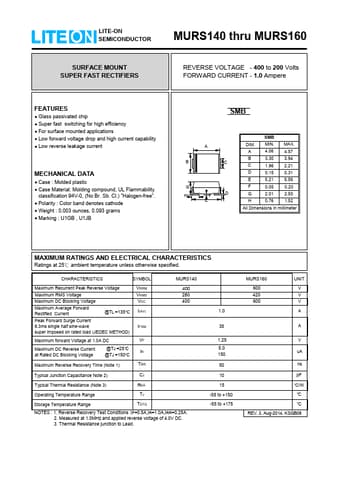

LITE-ON SEMICONDUCTOR MURS140 thru MURS160 SURFACE MOUNT SUPER FAST RECTIFIERS REVERSE VOLTAGE - 400 to 200 Volts FORWARD CURRENT - 1.0 Ampere FEATURES Glass passivated chip Super fast switching for high efficiency For surface mounted applications Low forward voltage drop and high current capability Low reverse leakage current MECHANICAL DATA Case : Molded plastic Case Material: Molding compound, UL Flammability classification 94V-0, (No Br. Sb. Cl.) "Halogen-free". Polarity : Color band denotes cathode Weight : 0.003 ounces, 0.093 grams Marking : U1GB , U1JB SMB SMB A DIM. MIN. MAX. A 4.06 4.57 B B 3.30 3.94 C C 1.96 2.21 D 0.15 0.31 E 5.21 5.59 G H FD E F 0.05 0.20 G 2.01 2.50 H 0.76 1.
