LTV-824M - Photocoupler

Download the LTV-824M datasheet PDF. This datasheet also covers the LTV-814-LITE variant, as both devices belong to the same photocoupler family and are provided as variant models within a single manufacturer datasheet.

General Description

1.1

Key Features

  • Current transfer ratio ( CTR : MIN. 20% at IF = ±1mA, VCE = 5V ).
  • High input-output isolation voltage ( Viso = 5,000Vrms ).
  • Response time ( tr : TYP. 4µs at VCC = 5V, IC = 2mA, RL = 100Ω ).
  • Dual-in-line package : LTV-814 : 1-channel type LTV-824 : 2-channel type LTV-844 : 4-channel type.
  • Wide lead spacing package : LTV-814M : 1-channel type LTV-824M : 2-channel type LTV-844M : 4-channel type.
  • Surface mounting package : LTV-814S : 1-channel type LTV-824S : 2-channel.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTV-814-LITE-ON.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LTV-824H Photocoupler Lite-On Technology Corporation
LTV-8212 Photocouplers LITEON
LTV-826 Photocoupler LITE-ON Electronics
LTV-826M Optocoupler LITE-ON Electronics
LTV-826M-V Optocoupler LITE-ON Electronics

Other Datasheets by LITEON

Part Number Description
LTV-824 Photocoupler
LTV-8241 Photocoupler
LTV-8241M Photocoupler
LTV-8241S Photocoupler
LTV-824S Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

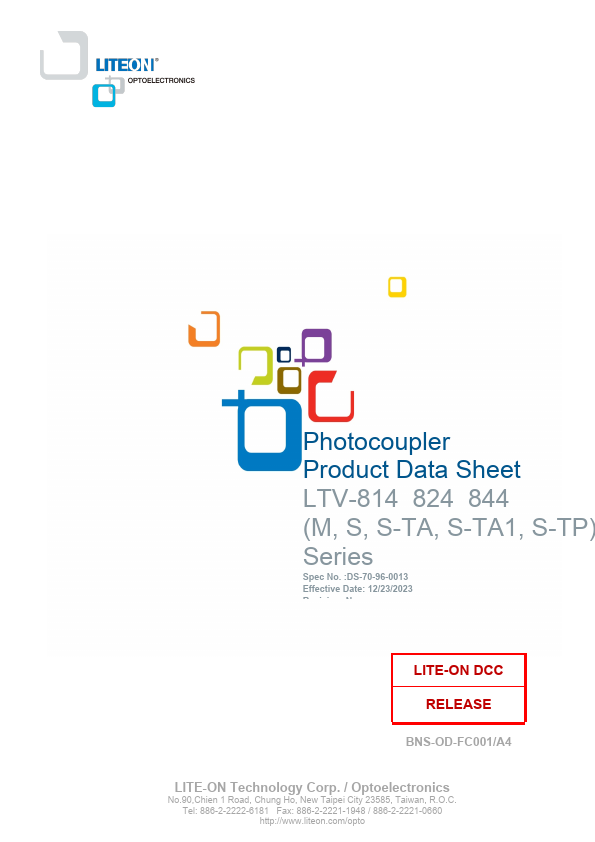

Photocoupler Product Data Sheet LTV-814 824 844 (M, S, S-TA, S-TA1, S-TP) Series Spec No. :DS-70-96-0013 Effective Date: 12/23/2023 Revision: N LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-8X4 series 1. DESCRIPTION 1.1 Features  Current transfer ratio ( CTR : MIN. 20% at IF = ±1mA, VCE = 5V )  High input-output isolation voltage ( Viso = 5,000Vrms )  Response time ( tr : TYP.
