LTV-8141 - Photocoupler

Download the LTV-8141 datasheet PDF. This datasheet also covers the LTV-8141-LITE variant, as both devices belong to the same photocoupler family and are provided as variant models within a single manufacturer datasheet.

General Description

Tape wide Pitch of sprocket holes Distance of compartment Distance of compartment to compartment Symbol W P0 F P2 P1 Dimensions in mm ( inches ) 16  0.3 ( .63 ) 4  0.1 ( .15 ) 7.5  0.1 ( .295 ) 2  0.1 ( .079 ) 12  0.1 ( .472 ) Part No.: LTV-8141 / 8241 / 8441 ( M, S, S-TA1, S-TA, S-TP ) Seri

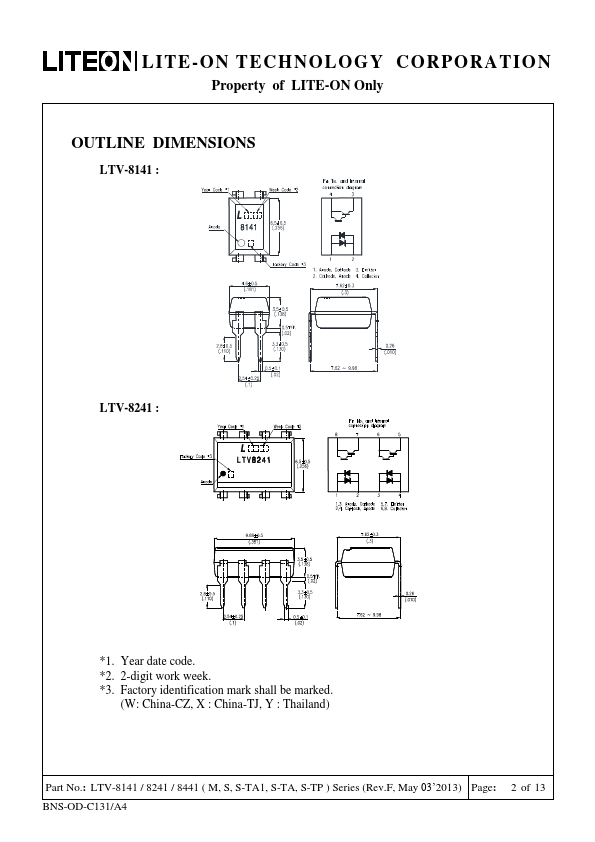

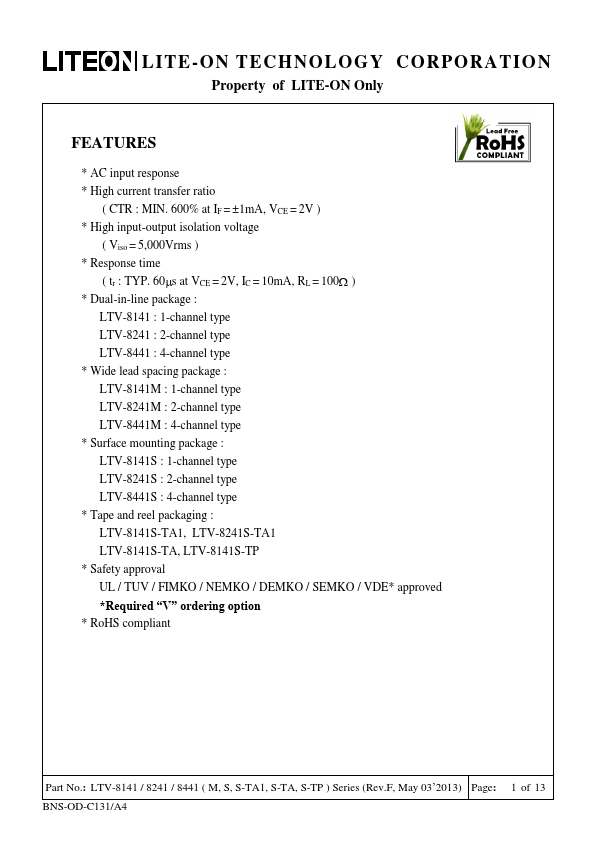

Key Features

  • AC input response.
  • High current transfer ratio ( CTR : MIN. 600% at IF = ±1mA, VCE = 2V ).
  • High input-output isolation voltage ( Viso = 5,000Vrms ).
  • Response time ( tr : TYP. 60s at VCE = 2V, IC = 10mA, RL = 100 ).
  • Dual-in-line package : LTV-8141 : 1-channel type LTV-8241 : 2-channel type LTV-8441 : 4-channel type.
  • Wide lead spacing package : LTV-8141M : 1-channel type LTV-8241M : 2-channel type LTV-8441M : 4-channel type.
  • Surface mounting package : LTV-8141.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTV-8141-LITE-ON.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LTV-814H AC Input Type Photocoupler LITE-ON Electronics
LTV-816 Photocoupler LITE-ON Electronics
LTV-816-AT Optocoupler LITE-ON Electronics
LTV-816-CT Optocoupler LITE-ON Electronics
LTV-816-DT Optocoupler LITE-ON Electronics

Other Datasheets by LITEON

Part Number Description
LTV-8141M Photocoupler
LTV-8141S Photocoupler
LTV-814 Photocoupler
LTV-814M Photocoupler
LTV-814S Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

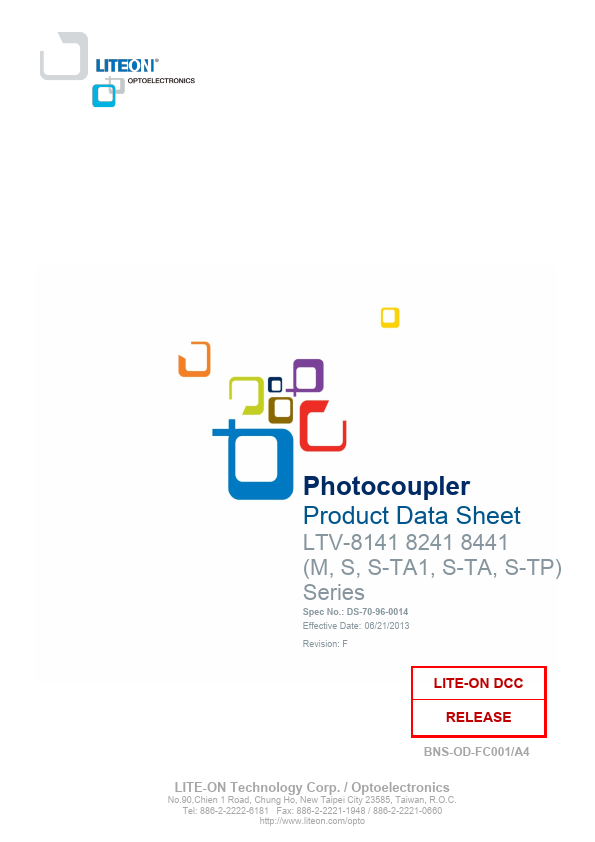

Photocoupler Product Data Sheet LTV-8141 8241 8441 (M, S, S-TA1, S-TA, S-TP) Series Spec No.: DS-70-96-0014 Effective Date: 06/21/2013 Revision: F LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only FEATURES * AC input response * High current transfer ratio ( CTR : MIN. 600% at IF = ±1mA, VCE = 2V ) * High input-output isolation voltage ( Viso = 5,000Vrms ) * Response time ( tr : TYP.
