LTS-6775JD, LTS-6775JD-LITE Datasheet - LITE-ON

LTS-6775JD LED Display

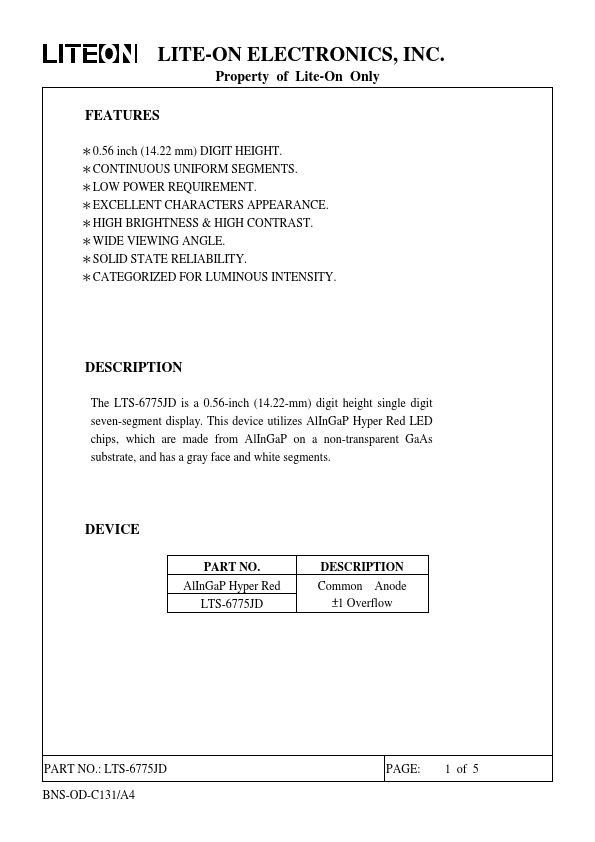

The LTS-6775JD is a 0.56-inch (14.22-mm) digit height single digit seven-segment display. This device utilizes AlInGaP Hyper Red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP Hyper Red LTS-6775JD DESCRIP.

LTS-6775JD-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTS-6775JD, LTS-6775JD-LITE. Please refer to the document for exact specifications by model.

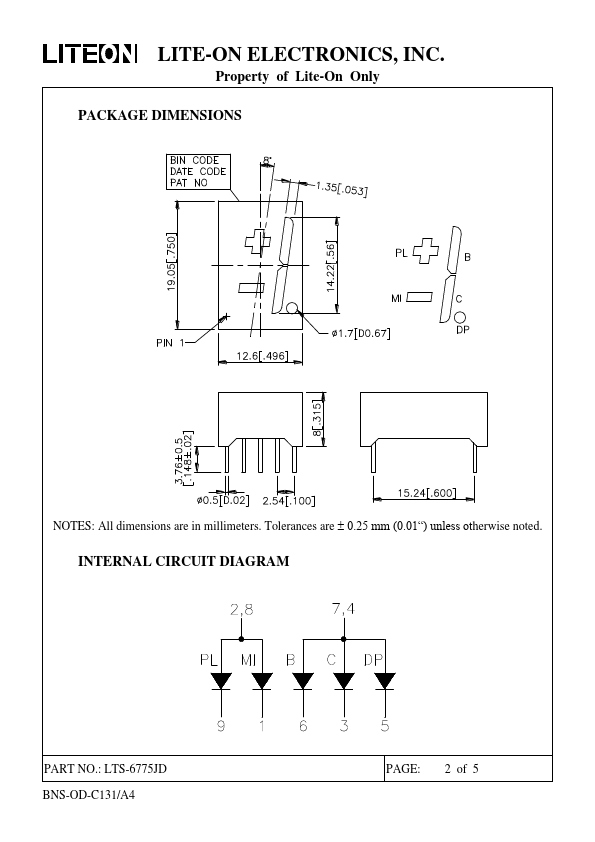

LTS-6775JD Datasheet Preview Page 2 LTS-6775JD Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-6775JD, LTS-6775JD-LITE

Manufacturer:

LITE-ON

File Size:

359.84 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTS-6775JD, LTS-6775JD-LITE.
Please refer to the document for exact specifications by model.
