LTS-4801JS, LTS-4801JS-LITE Datasheet - LITE-ON

LTS-4801JS LED Display

The LTS-4801JS is a 0.39-inch (10.0-mm) height single digit seven-segment display. This device utilizes AlInGaP Yellow LED chips, which are made from AlInGaP on GaAs substrate, and has a gray face and white segments. DEVICE PART NO. AlInGaP Yellow LTS-4801JS DESCRIPTION Common Anode Rt. Hand Deci.

LTS-4801JS-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTS-4801JS, LTS-4801JS-LITE. Please refer to the document for exact specifications by model.

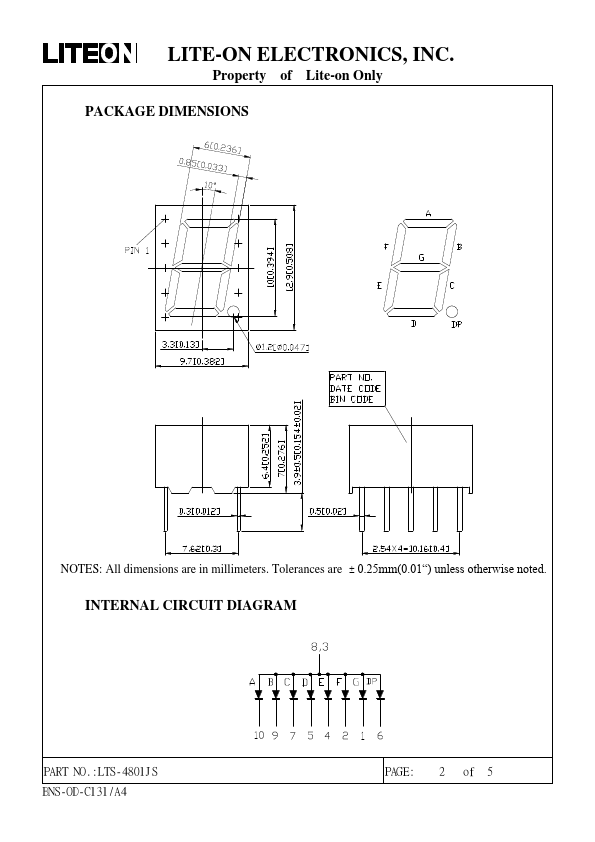

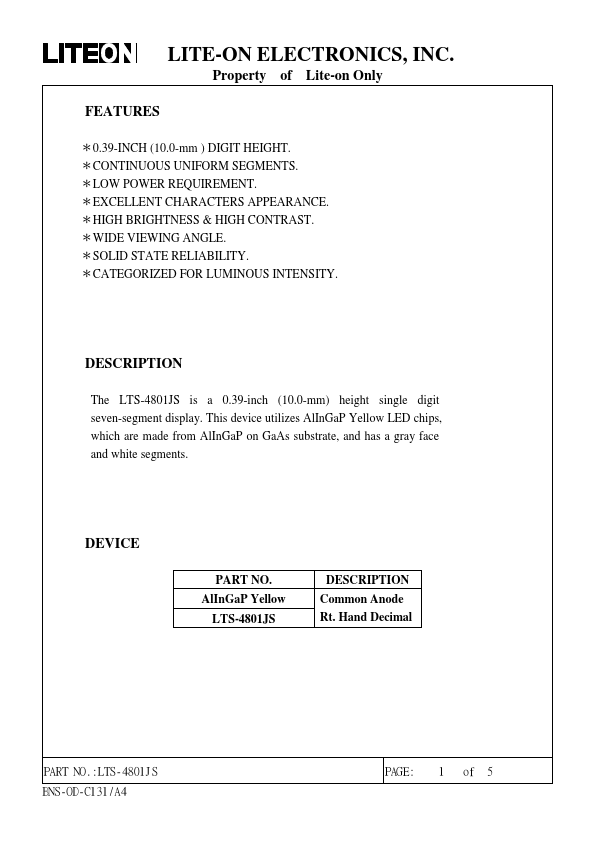

LTS-4801JS Datasheet Preview Page 2 LTS-4801JS Datasheet Preview Page 3

Datasheet Details

Part number:

LTS-4801JS, LTS-4801JS-LITE

Manufacturer:

LITE-ON

File Size:

353.20 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTS-4801JS, LTS-4801JS-LITE.
Please refer to the document for exact specifications by model.
