Download the ER102 datasheet PDF.
This datasheet also covers the ER101 variant, as both devices belong to the same super fast rectifiers family and are provided as variant models within a single manufacturer datasheet.
Key Features
Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0
Mechanical Data
Case:JEDEC DO--41,molded plastic Polarity: Color band denotes cathode Weight: 0.012 ounces,0.34 grams Mounting position: Any
DO - 41
Dimensions in millimeters.
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
ER102. For precise diagrams, and layout, please refer to the original PDF.

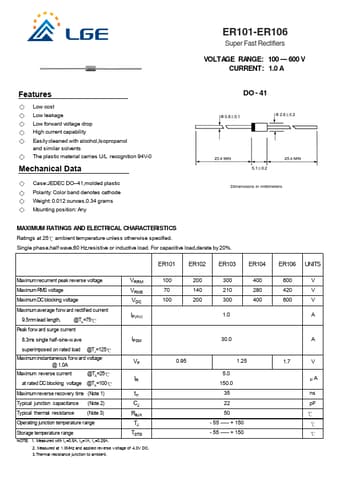

ER101-ER106 Super Fast Rectifiers VOLTAGE RANGE: 100 --- 600 V CURRENT: 1.0 A Features Low cost Low leakage Low forward voltage drop High current capability Easily cleane...
View more extracted text
leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC DO--41,molded plastic Polarity: Color band denotes cathode Weight: 0.012 ounces,0.34 grams Mounting position: Any DO - 41 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
ER102 Datasheet
