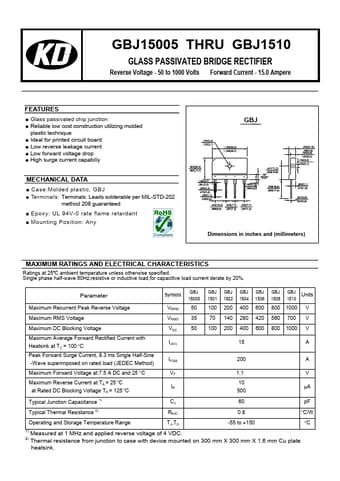

GBJ15005 THRU GBJ1510
GLASS PASSIVATED BRIDGE RECTIFIER
Reverse Voltage - 50 to 1000 Volts Forward Current - 15.0 Ampere
FEATURES
● Glass passivated chip junction ● Reliable low cost construction utilizing molded
plastic technique ● Ideal for printed circuit board ● Low reverse leakage current ● Low forward voltage drop ● High surge current capabiliy
MECHANICAL DATA
● Case:Molded plastic, GBJ ● Terminals: Terminals: Leads solderable per MIL-STD-202
method 208 guaranteed
● Epoxy: UL 94V-0 rate flame retardant ● Mounting Position: Any
GBJ
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
