QC875SG-011 - Low Voltage DC Motor

📥 Download Datasheet

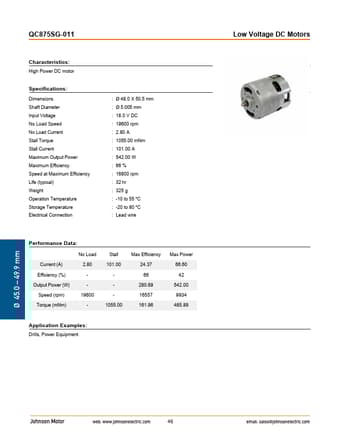

Datasheet preview – QC875SG-011

Datasheet Details

Part number QC875SG-011
Manufacturer Johnson Motor
File Size 139.08 KB
Description Low Voltage DC Motor
Datasheet download datasheet QC875SG-011 Datasheet
Additional preview pages of the QC875SG-011 datasheet.

📁 Similar Datasheet

Other Datasheets by Johnson Motor

    Full PDF Text Transcription

    Click to expand full text
    QC875SG-011 Characteristics: High Power DC motor Specifications: Dimensions Shaft Diameter Input Voltage No Load Speed No Load Current Stall Torque Stall Current Maximum Output Power Maximum Efficiency Speed at Maximum Efficiency Life (typical) Weight Operation Temperature Storage Temperature Electrical Connection : Ø 48.0 X 50.5 mm : Ø 5.005 mm : 18.0 V DC : 19600 rpm : 2.80 A : 1055.00 mNm : 101.00 A : 542.00 W : 66 % : 16800 rpm : 32 hr : 325 g : -10 to 55 °C : -20 to 80 °C : Lead wire Performance Data: No Load Current (A) 2.80 Efficiency (%) - Output Power (W) - Speed (rpm) 19600 Torque (mNm) - Stall 101.00 1055.00 Max Efficiency 24.37 66 280.69 16557 161.96 Max Power 66.60 42 542.00 9934 485.
