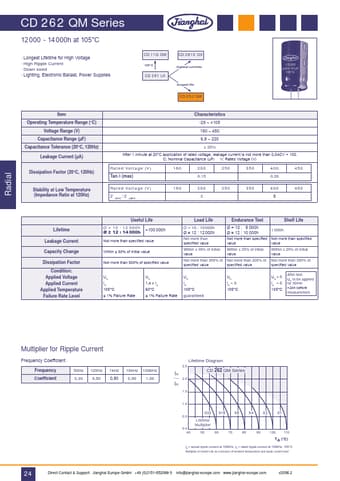

CD 262 QMwww.DataSheet4U.com Series
12 000 - 14 000h at 105°C
· Longest Lifetime for High Voltage
· High Ripple Current
· Down sized
· Lighting, Electronic Ballast, Power Supplies
CD 11G GW
125°C
CD 261 LK
CD 261X QX
highest currents
longest life
CD 262 QM
Item
Operating Temperature Range (°C)
Voltage Range (V)
Capacitance Range (µF)
Capacitance Tolerance (20°C, 120Hz)
Leakage Current (µA)
Dissipation Factor (20°C, 120Hz)
Stability at Low Temperature
(Impedance Ratio at 120Hz)
Characteristics
-25 ~ +105
160 ~ 450
6,8 ~ 220
± 20%
After 1 minute at 20°C application of rated voltage, leakage current is not more than 0,04CV + 100.
C: Nominal Capacitance (µF) V: Rated Voltage (V)
Rated Voltage (V)
160
200
250
350
400
450
Tanδ(max) 0,15 0,20
Rated Voltage (V)
Z -25°C / Z +20°C
160
200
3
250
350
400
6
450
Lifetime
Leakage Current
Capacity Change
Dissipation Factor
Condition:
Applied Voltage
Applied Current
Applied Temperature
Failure Rate Level
Useful Life
Ø = 10 : 12 000h
Ø ≥ 12 : 14 000h
>100  000h
Not more than specified value
Within ± 50% of initial value
Not more than 500% of specified value
Load Life
Ø = 10 : 10 000h
Ø ≥ 12 : 12 000h
Not more than
specified value
Within ± 30% of initial
value
Not more than 300% of
specified value
Endurance Test
Ø = 10 : 8 000h
Ø ≥ 12 : 10  000h
Not more than specified
value
Within ± 20% of initial
value
Not more than 200% of
specified value
Shelf Life
1 000h
Not more than specified
value
Within ± 20% of initial
value
Not more than 200% of
specified value
U
R
I
R
105°C
≤ 1% Failure Rate
U
R
1,4 x I
R
60°C
≤ 1% Failure Rate
U
R
I
R
105°C
guaranteed
U
R
I
R
=
0
105°C
U
R
=
0
I
R
=0
105°C
After test:
U
R
to
be
applied
for 30min
>24h before
measurement
Multiplier for Ripple Current
Frequency Coefficient
Frequency
Coefficient
50Hz 120Hz 1kHz 10kHz 100kHz
0,30 0,50 0,80 0,90 1,00
Lifetime Diagram
2.5
IA
––– 2.0
CD 262 QM Series
IR
1.5
1.0
0.5
0.0
40
X32
Lifetime
Multiplier
50
X16
60
X8
70
X4
80
X2 X1
90 100 110
TA (˚C)
I = actual ripple current at 100kHz, I = rated ripple current at 100kHz, 105°C
AR
Multiplier of Useful Life as a function of ambient temperature and ripple current load
24
Direct Contact & Support: Jianghai Europe GmbH +49 (0)2151-652088-0 info@jianghai-europe.com www.jianghai-europe.com
v2006.2




Jianghai Europe GmbH

CD262QM Datasheet Preview

CD262QM Datasheet

Capacitor

No Preview Available !

VDC
(Surge
Voltage)
Code
Rated
Max  ESR
Capacitance 20°C, 100Hz
Typ  ESR
20°C, 100Hz
(V)
160
(200)
2C
200
(250)
2D
250
(300)
2E
350
(400)
2V
(µF)
10
22
33
47
68
100
150
220
10
22
33
47
68
100
150
220
10
22
33
47
68
100
150
6,8
10
22
33
47
68
(Ω)
23,9
10,9
7,2
5,1
3,5
3,5
2,4
2,4
1,6
1,6
1,1
1,1
23,9
10,9
7,2
5,1
3,5
3,5
2,4
2,4
1,6
1,6
1,1
23,9
10,9
7,2
5,1
5,1
3,5
3,5
2,4
2,4
1,6
46,9
31,8
14,5
9,7
6,8
6,8
4,7
4,7
(Ω)
8,0
3,6
2,5
1,7
1,2
1,2
0,80
0,80
0,50
0,50
0,35
0,35
8,0
3,6
2,4
1,7
1,2
1,2
0,80
0,80
0,50
0,50
0,35
8,0
3,5
2,5
1,7
1,7
1,2
1,2
0,80
0,80
0,50
16,0
11,0
5,0
3,5
2,3
2,3
1,6
1,6
Max 
Ripple
Current
105°C,
100kHz
(mArms)
250
500
500
660
760
760
1 120
1 120
1 360
1 360
1 400
1 400
250
500
600
660
760
760
1 120
1 120
1 360
1 360
1 700
280
600
600
720
720
920
920
1 200
1 200
1 500
220
280
350
500
660
660
850
850
Size
ØDxL
(mm)
10 x 16
10 x 20
10 x 20
12,5 x 20
12,5 x 25
16 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
16 x 31,5
18 x 25
10 x 16
10 x 20
12,5 x 20
12,5 x 20
12,5 x 25
16 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
18 x 31,5
10 x 20
12,5 x 20
12,5 x 20
12,5 x 25
16 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
18 x 31,5
10 x 16
10 x 20
12,5 x 20
16 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
CD 262 QM Series
Ratings for CD 262 QM Series
VDC
(Surge
Voltage)
Code
Rated
Max  ESR
Capacitance 20°C, 100Hz
Typ  ESR
20°C, 100Hz
(V)
400
(450)
2G
450
(500)
2W
(µF)
6,8
10
22
33
47
68
6,8
10
22
33
47
68
(Ω)
46,8
31,8
14,5
14,5
9,7
9,7
6,8
6,8
4,7
46,8
31,8
14,5
14,5
9,7
9,7
6,8
4,7
(Ω)
16,0
11,0
5,0
5,0
3,5
3,5
2,3
2,3
1,6
16,0
11,0
5,0
5,0
3,5
3,5
2,3
1,6
Max 
Ripple
Current
105°C,
100kHz
(mArms)
220
280
430
430
640
640
840
840
1 000
150
320
560
560
700
700
880
1 130
Size
ØDxL
(mm)
10 x 16
10 x 20
12,5 x 25
16 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
18 x 31,5
10 x 20
12,5 x 20
16 x 25
18 x 20
16 x 31,5
18 x 25
18 x 31,5
18 x 35,5
Custom products are available on request.
Direct Contact & Support: Jianghai Europe GmbH +49 (0)2151-652088-0 info@jianghai-europe.com www.jianghai-europe.com
v2006.2
