BY550-50 - GENERAL PURPOSE PLASTIC RECTIFIER

Key Features

  • Low cost Diffused junction High current capability The plastic material carries U/L recognition 94V-0 High temperature soldering guaranteed:260 C/10 seconds at terminals Component in accordance to RoHs 2002/95/EC and WEEE 2002/96/EC.

📥 Download Datasheet

Datasheet Details

Part number BY550-50
Manufacturer JINAN JINGHENG
File Size 52.55 KB
Description GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet download datasheet BY550-50 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BY550-50 SILICON RECTIFIER DIODES EIC
BY550-50 5.0 Amps. Silicon Rectifiers JGD
BY550-50 5.0A STANDARD DIODE WONTOP
BY550-50 5 Amp. Silicon Rectifier Diodes FAGOR
BY550-50 AXIAL LEADED SILICON RECTIFIER DIODES Sunmate

Other Datasheets by JINAN JINGHENG

Part Number Description
BY550-100 GENERAL PURPOSE PLASTIC RECTIFIER
BY550-1000 GENERAL PURPOSE PLASTIC RECTIFIER
BY550-200 GENERAL PURPOSE PLASTIC RECTIFIER
BY550-400 GENERAL PURPOSE PLASTIC RECTIFIER
BY550-600 GENERAL PURPOSE PLASTIC RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

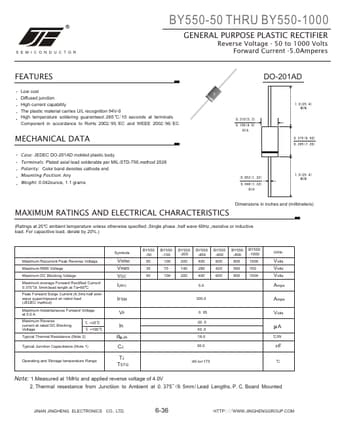

R SEMICONDUCTOR BY550-50 THRU BY550-1000 GENERAL PURPOSE PLASTIC RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current -5.0Amperes JF SILICON RECTIFIER FEATURES Low cost Diffused junction High current capability The plastic material carries U/L recognition 94V-0 High temperature soldering guaranteed:260 C/10 seconds at terminals Component in accordance to RoHs 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA Case: JEDEC DO-201AD molded plastic body Terminals: Plated axial lead solderable per MIL-STD-750,method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: 0.042ounce, 1.1 grams DO-201AD 0.210(5.3) 0.190(4.8) DIA 1.0(25.4) MIN 0.375(9.50) 0.285(7.20) 0.052(1.32) 0.048(1.22) DIA 1.0(25.
