SH1003AQ - N-Ch Power MOSFET

Key Features

  • Ultra-low ON-resistance, RDS(ON).
  • Low Gate Charge, Qg.
  • 100% UIS and Rg Tested.
  • Pb-free Lead Plating.
  • Halogen-free and RoHS-compliant.
  • AEC-Q101 Qualified for Automotive.

📥 Download Datasheet

Datasheet Details

Part number SH1003AQ
Manufacturer JIEJIE
File Size 302.20 KB
Description N-Ch Power MOSFET
Datasheet download datasheet SH1003AQ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SH100G21A High Speed Thyristor Toshiba
SH100M0010A5F-0611 Aluminum Electrolytic Capacitors YAGEO
SH100M0010AZF-0611 Aluminum Electrolytic Capacitors YAGEO
SH100M0010BZF-0611 Aluminum Electrolytic Capacitors YAGEO
SH100M0015A3F-0811 Aluminum Electrolytic Capacitors YAGEO

Other Datasheets by JIEJIE

Part Number Description
SH1018AQ N-Ch Power MOSFET
SH1509AQ N-Ch Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

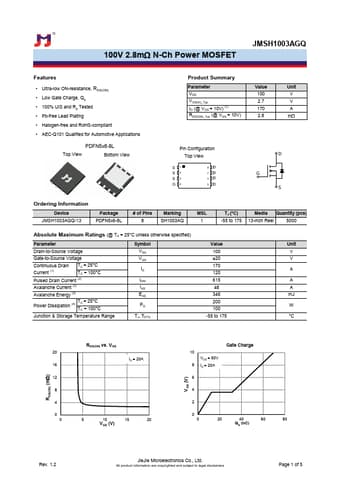

100V 2.8m N-Ch Power MOSFET JMSH1003AGQ Features • Ultra-low ON-resistance, RDS(ON) • Low Gate Charge, Qg • 100% UIS and Rg Tested • Pb-free Lead Plating • Halogen-free and RoHS-compliant • AEC-Q101 Qualified for Automotive Applications PDFN5x6-8L Top View Bottom View Product Summary Parameter VDS VGS(th)_Typ ID (@ VGS = 10V) (1) RDS(ON)_Typ (@ VGS = 10V) Value 100 2.7 170 2.
