FR306 - 3.0 Amps. Fast Recovery Rectifiers

Product Overview

JGD

Part number	FR306
Manufacturer	JGD
File Size	368.31 KB
Description	3.0 Amps. Fast Recovery Rectifiers
Datasheet	FR306 Datasheet
Note	This datasheet PDF includes multiple part numbers: FR306, FR301. Please refer to the document for exact specifications by model.
Additional preview pages of the FR306 datasheet.

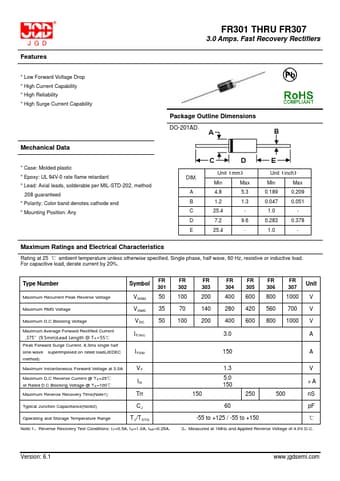

FR301 THRU FR307 3.0 Amps. Fast Recovery Rectifiers.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Mechanical Data Package Outline Dimensions DO-201AD：.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
Polarity: Color band denotes cathode end.
Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 4.8 5.3 1.2 1.3.
