89CNQ150A - SCHOTTKY RECTIFIER

Download the 89CNQ150A datasheet PDF (89CNQ included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for schottky rectifier.

Features

  • The 89CNQA center tap Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature. Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (89CNQ_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

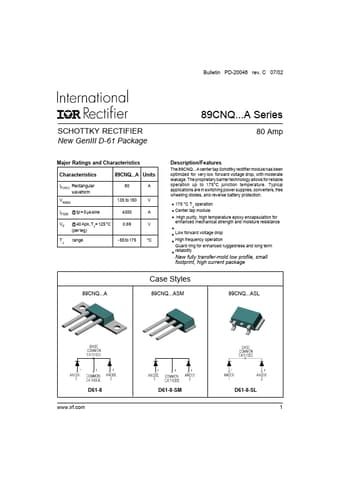

Bulletin PD-20046 rev. C 07/02 SCHOTTKY RECTIFIER New GenIII D-61 Package 89CNQ...A Series 80 Amp Major Ratings and Characteristics Characteristics 89CNQ...A Units IF(AV) Rectangular waveform VRRM 80 135 to 150 IFSM @ tp = 5 µs sine 4300 VF @40 Apk, TJ= 125 °C (per leg) 0.69 TJ range - 55 to 175 A V A V °C Description/Features The 89CNQ...A center tap Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 175°C junction temperature. Typical applications are in switching power supplies, converters, free wheeling diodes, and reverse battery protection.
