IRS2461S 400V Class D Audio Amplifier Controller

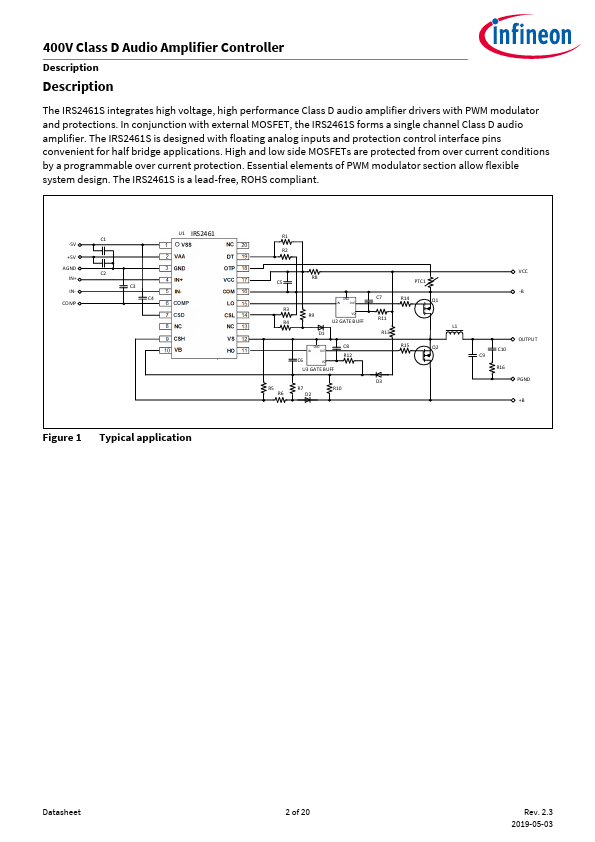

Description The IRS2461S integrates high voltage, high performance Class D audio amplifier drivers with PWM modulator and protections. In conjunction with external MOSFET, the IRS2461S forms a single channel Class D audio amplifier. The IRS2461S is designed with floating analog inputs and protection.

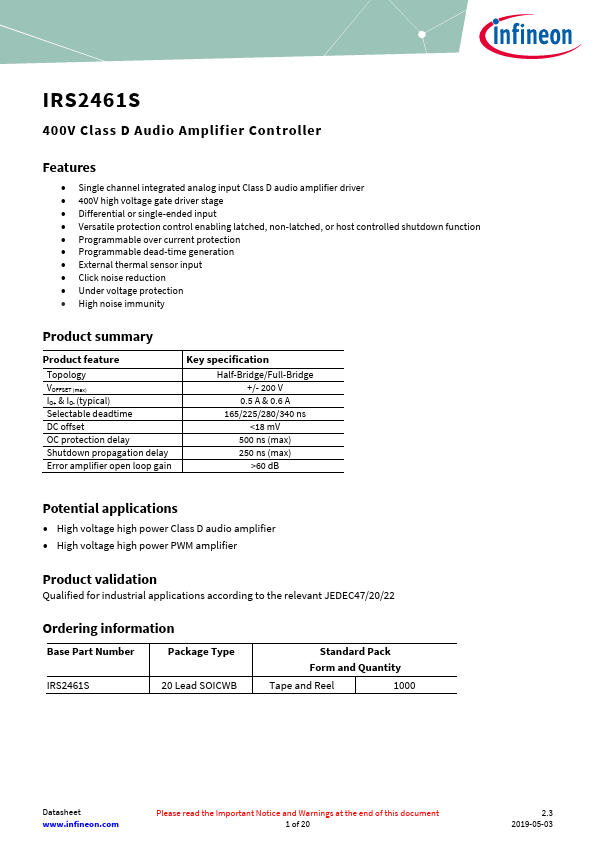

IRS2461S Features

* Single channel integrated analog input Class D audio amplifier driver

* 400V high voltage gate driver stage

* Differential or single-ended input

* Versatile protection control enabling latched, non-latched, or host controlled shutdown function

* Programmable over current protec

IRS2461S Datasheet (499.31 KB)
