MPX154K305E - Capacitor

Download the MPX154K305E datasheet PDF. This datasheet also covers the MPX103K305D variant, as both devices belong to the same capacitor family and are provided as variant models within a single manufacturer datasheet.

Features

  • 85/85 THB.
  • Safety Agency Approved Metalized Polypropylene.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MPX103K305D-illinoiscapacitor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MPX154K305E
Manufacturer Illinois Capacitor
File Size 591.94 KB
Description Capacitor
Datasheet download datasheet MPX154K305E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPX154 INTERFERENCE SUPPRESSORS CARLI ELECTRONICS
MPX153 INTERFERENCE SUPPRESSORS CARLI ELECTRONICS
MPX155 INTERFERENCE SUPPRESSORS CARLI ELECTRONICS
MPX10 10 kPa Uncompensated Silicon Pressure Sensors Freescale Semiconductor
MPX103 INTERFERENCE SUPPRESSORS CARLI ELECTRONICS

Other Datasheets by Illinois Capacitor

Part Number Description
MPX154K305D Capacitor
MPX155K305G Capacitor
MPX155K305H Capacitor
MPX156K305N Capacitor
MPX156K305R Capacitor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

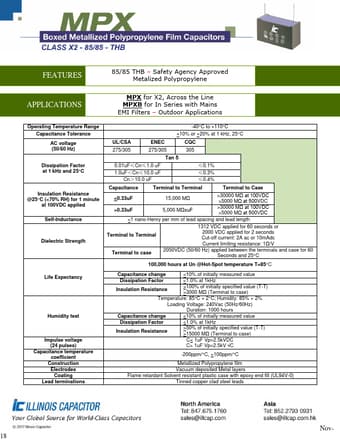

FEATURES 85/85 THB – Safety Agency Approved Metalized Polypropylene APPLICATIONS MPX for X2, Across the Line MPXB for In Series with Mains EMI Filters – Outdoor Applications Operating Temperature Range Capacitance Tolerance AC voltage (50/60 Hz) Dissipation Factor at 1 kHz and 25°C Insulation Resistance @25°C (<70% RH) for 1 minute at 100VDC applied Self-Inductance Dielectric Strength Life Expectancy Humidity test Impulse voltage (24 pulses) Capacitance temperature coefficient Construction Electrodes Coating Lead terminations -40°C to +110°C +10% or +20% at 1 kHz, 25°C UL/CSA ENEC CQC 275/305 275/305 Tan δ 0.01uF≤Cn≤1.0 uF 1.0uF＜Cn≤10.0 uF Cn＞10.0 uF 305 ≤0.1% ≤0.3% ≤0.4% Capacitance Terminal to Terminal Terminal to Case <0.33uF >0.
