DPG10IM300UC - High Performance Fast Recovery Diode

IXYS

The DPG10IM300UC by IXYS is a High Performance Fast Recovery Diode. Below is the official datasheet preview.

📥 Download Datasheet

DPG10IM300UC High Performance Fast Recovery Diode by IXYS - Datasheet Preview — Official preview page of the **DPG10IM300UC** High Performance Fast Recovery Diode datasheet (IXYS).

Datasheet Details

Part number	DPG10IM300UC
Manufacturer	IXYS
File Size	178.93 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPG10IM300UC-IXYS.pdf

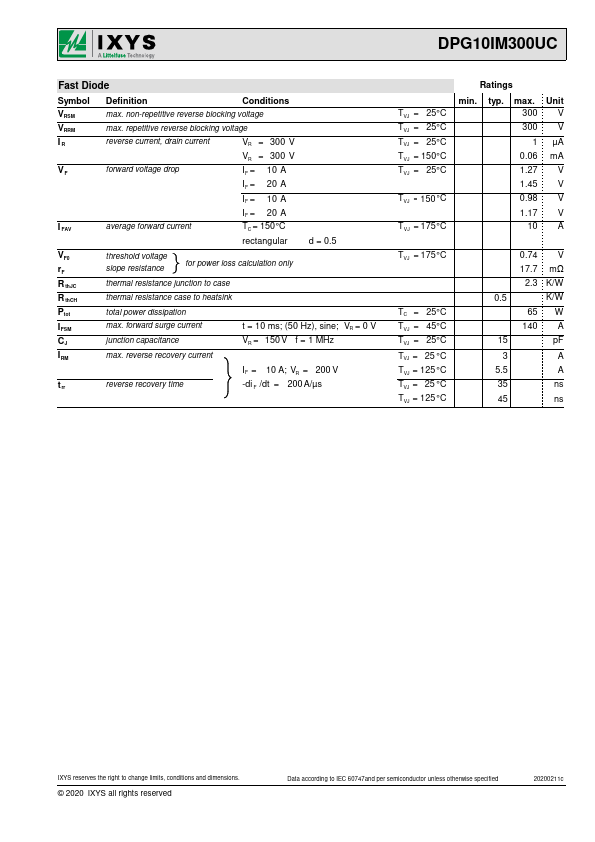

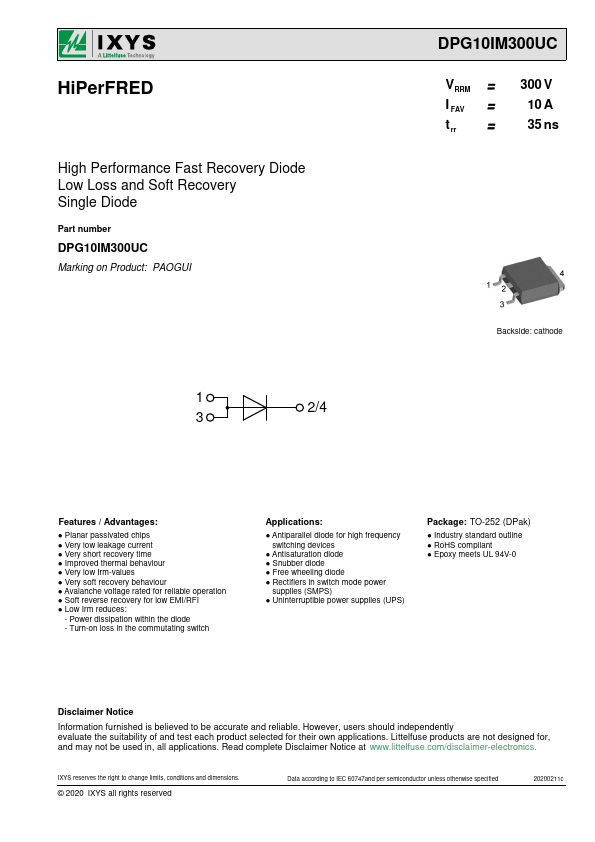

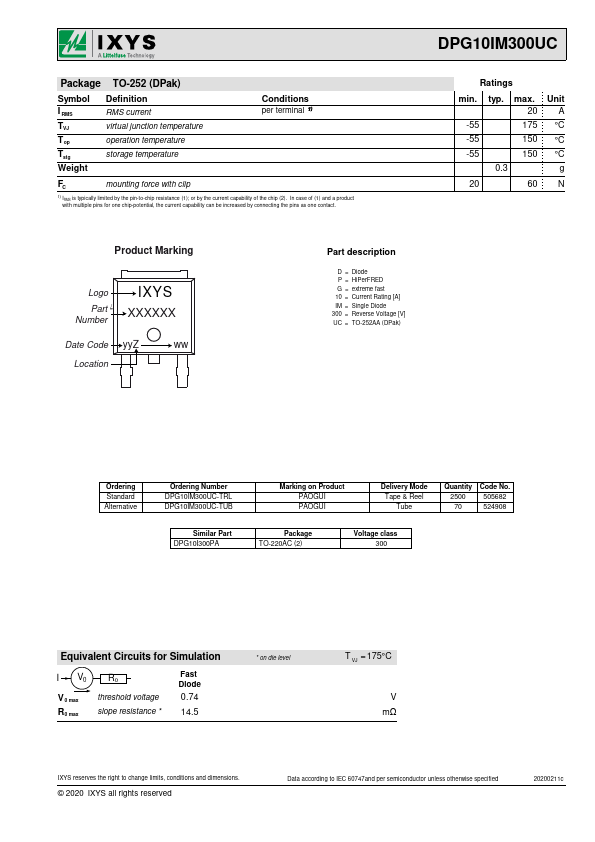

Additional preview pages of the DPG10IM300UC datasheet.

DPG10IM300UC Product details

Description

D = Diode P = HiPerFRED G = extreme fast 10 = Current Rating [A] IM = Single Diode 300 = Reverse Voltage [V] UC = TO-252AA (DPak) Ordering Standard Alternative Ordering Number DPG10IM300UC-TRL DPG10IM300UC-TUB Similar Part DPG10I300PA Marking on Product PAOGUI PAOGUI Delivery Mode Tape & Reel Tube Quantity Code No.2500 505682 70 524908 Package TO-220AC (2) Voltage class 300 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Di

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
