1N4750 - Glass-Encapsulate Diodes

Download the 1N4750 datasheet PDF. This datasheet also covers the 1N4728 variant, as both devices belong to the same glass-encapsulate diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • For use in stabilizing and clipping circuits with high power rating. Standard zener voltage tolerance is ±10%. Add suffix "A" for ±5% tolerance.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4728-Hottech.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N4750
Manufacturer Hottech
File Size 384.22 KB
Description Glass-Encapsulate Diodes
Datasheet download datasheet 1N4750 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N4750 ZENER DIODES General Semiconductor
1N4750 SILICON ZENER DIODES EIC discrete Semiconductors
1N4750 Zener Diodes Vishay
1N4750 1W SILICON PLANAR ZENER DIODES JINGHENG ELECTRONICS
1N4750 SILICON PLANAR POWER ZENER DIODES SEMTECH

Other Datasheets by Hottech

Part Number Description
1N4751 Glass-Encapsulate Diodes
1N4752 Glass-Encapsulate Diodes
1N4753 Glass-Encapsulate Diodes
1N4754 Glass-Encapsulate Diodes
1N4755 Glass-Encapsulate Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

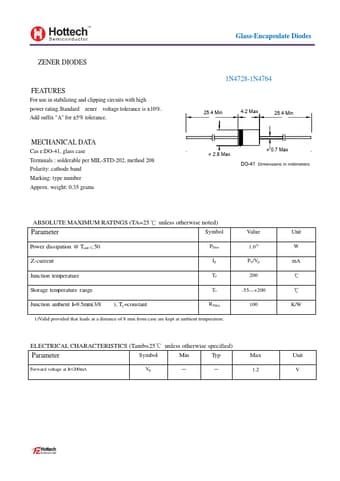

ZENER DIODES FEATURES For use in stabilizing and clipping circuits with high power rating.Standard zener voltage tolerance is ±10%. Add suffix "A" for ±5% tolerance. MECHANICAL DATA Cas e:DO-41, glass case Terminals : solderable per MIL-STD-202, method 208 Polarity: cathode band Marking: type number Approx. weight: 0.35 grams Glass-Encapsulate Diodes 1N4728-1N4764 25.4 Min 4.2 Max 25.4 Min 2.8 Max 0.7 Max DO-41 Dimensions in millimeters ABSOLUTE MAXIMUM RATINGS (TA=25 unless otherwise noted) Parameter Symbol Power dissipation @ Tamb 50 PDiss Z-current IZ Junction temperature TJ Storage temperature range Ts Junction ambient I=9.5mm(3/8 ), TL=constant RThJA 1)Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature. Value 1.
