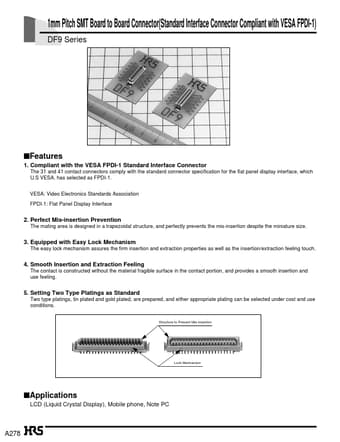

1mm Pitch SMT Board to Board Connector(Standard Interface Connector pliant with VESA FPDI-1) DF9 Series s Features 1. pliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors ply with the standard connector specification for the flat panel display interface, which U.S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mechanism The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch. 4. Smooth Insertion and Extraction Feeling The contact is constructed without the material fragible surface in the contact portion, and provides a smooth insertion and use feeling. 5. Setting Two Type Platings as Standard Two type platings, tin plated and gold plated, are prepared, and either appropriate plating can be selected under cost and use conditions. Structure to Prevent Mis-insertion Lock Mechanism s Applications LCD (Liquid Crystal Display), Mobile phone, Note PC A278 s Product Specifications Rating Current rating 0.5A Voltage rating150V AC Operating Temperature Range -45 to +125ç (Note 1) Storage Temperature Range -10 to +60ç (Note 2) Operating Humidity Range 40 to 80% Storage Humidity Range 40 to 70% Item 1. Insulation Resistance 2. Withstanding voltage 3. Contact Resistance 4. Vibration 6. Temperature Cycle 500M ohms min. specification 100V DC 250V AC/1 minute 100m A Condition No flashover or insulation breakdown. 50m ohms max. No electrical discontinuity of 1µs or more Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions. 5. Humidity (Steady state) Contact resistance: 50m ohms max. Insulation resistance: 500M ohms min. 96 hours at temperature of 40ç and humidity of...
