4N45 - High Gain Darlington Output Optocouplers

General Description

The 4N45/46 optocouplers contain a GaAsP light emitting diode optically coupled to a high gain photodetector IC.

Key Features

High Current Transfer Ratio.
1500% Typical.
Low Input Current Requirement.
0.5 mA.
Performance Guaranteed over 0°C to 70°C Temperature Range.
Internal Base-Emitter Resistor Minimizes Output Leakage.
Gain-Bandwidth Adjustment Pin.
Safety Approval UL Recognized -2500 V rms for 1 Minute CSA Approved.

📥 Download Datasheet

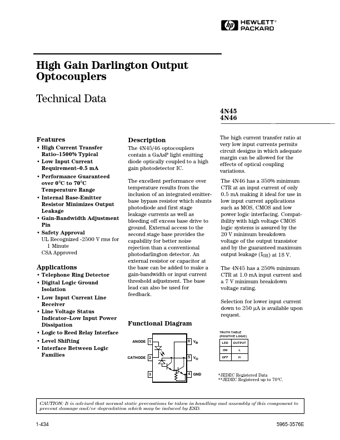

4N45 high gain darlington output optocouplers by HP - Datasheet Preview

Datasheet Details

Part number	4N45
Manufacturer	HP
File Size	215.56 KB
Description	High Gain Darlington Output Optocouplers
Datasheet	4N45 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
4N45	High Gain Darlington Output Optocouplers	Avago
4N45	N-Channel MOSFET Transistor	Inchange Semiconductor
4N40	PHOTO SCR OPTOCOUPLERS	Fairchild Semiconductor
4N40	PHOTO SCR OPTOCOUPLERS	QT Optoelectronics
4N40	N-Channel MOSFET Transistor	Inchange Semiconductor

Other Datasheets by HP

Part Number	Description
4N46	High Gain Darlington Output Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

High Gain Darlington Output Optocouplers Technical Data 4N45 4N46 Features • High Current Transfer Ratio–1500% Typical • Low Input Current Requirement–0.5 mA • Performance Guaranteed over 0°C to 70°C Temperature Range • Internal Base-Emitter Resistor Minimizes Output Leakage • Gain-Bandwidth Adjustment Pin • Safety Approval UL Recognized -2500 V rms for 1 Minute CSA Approved Applications • Telephone Ring Detector • Digital Logic Ground Isolation • Low Input Current Line Receiver • Line Voltage Status Indicator–Low Input Power Dissipation • Logic to Reed Relay Interface • Level Shifting • Interface Between Logic Families Description The 4N45/46 optocouplers contain a GaAsP light emitting diode optically coupled to a high gain photodetector IC.
